3 Series E36 M3 (S52) SAL
67 65 511
Removing and installing or replacing drive for
sun roller blind
Rear shelf removed,
refer to 51 46 000

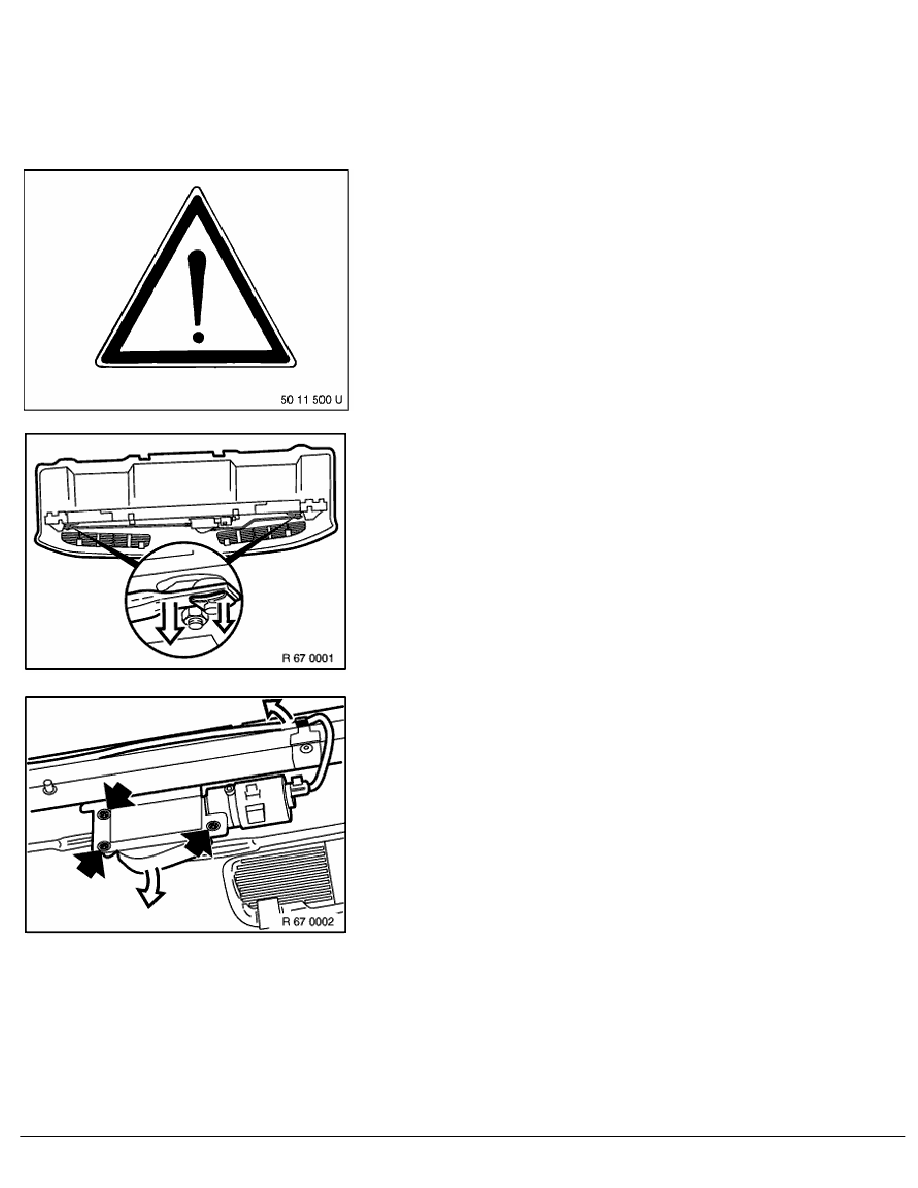

Caution!
Do not power up the drive mechanism if it is not completely
connected to the system.
If sun roller blind is not completely rolled up, there is spring
pressure on the linkage.
In this case, hold the sun roller blind under pretension, carefully
lever out the linkage and allow the roller blind to roll up slowly.
Unclip retaining clips and lever out left and right linkages.
Unfasten clips, loosen screws and lever out drive unit.
Installation:
Only tighten screws loosely.
