3 Series E36 M3 (S52) SAL
86 10 ...
Disassembly of rear apron
Note:
Remove rear light,
refer to 86 10 ... Replacing rear light.
Remove plastic bush/metal bush
refer to 86 10 ... Removing plastic bush/metal bush.

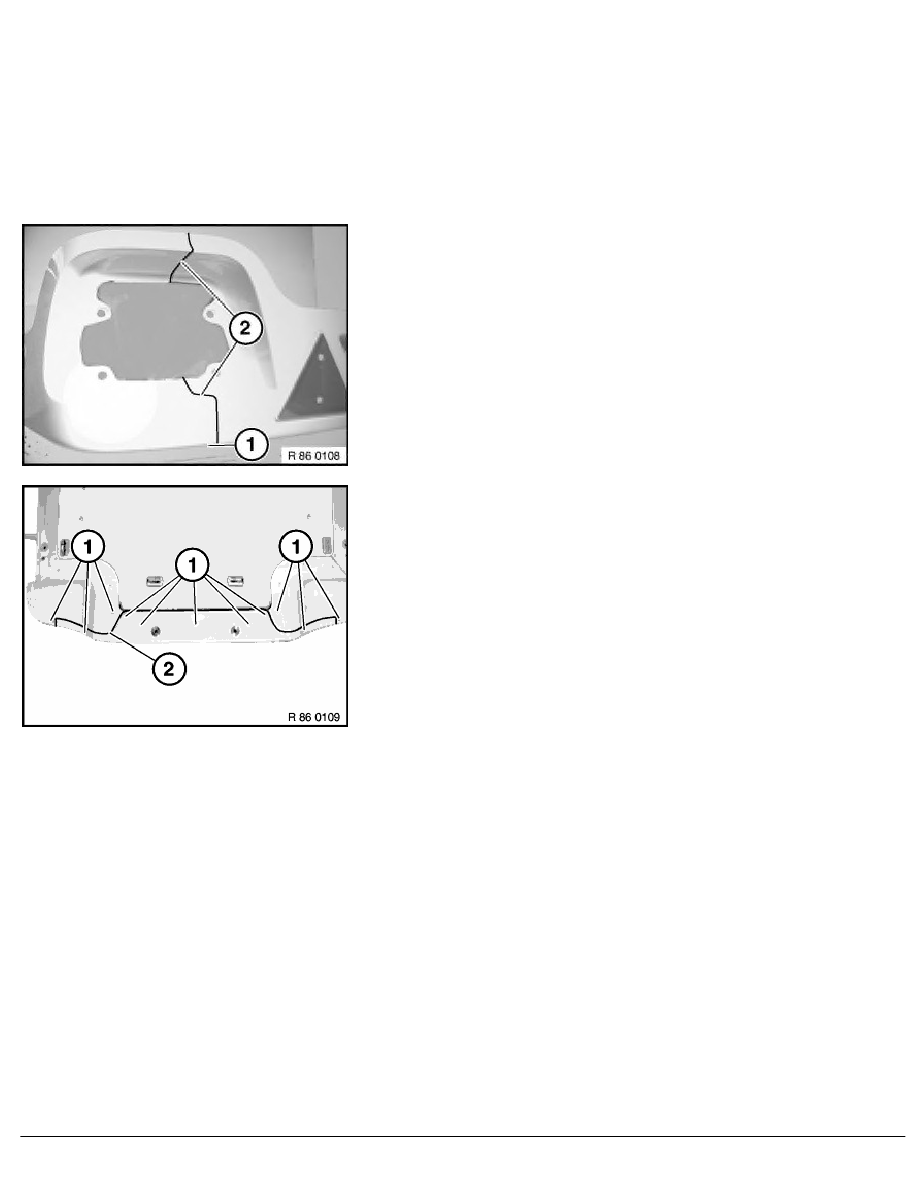

Cut through sealing compound (1) on left and right and remove.
Drill out rivets (2) on left and right sides on lower apron edge.
Installation:
Use Sikaflex 221 as sealing compound.
Cut through sealing compound (1) and remove.
Drill out rivets (2).
Installation:
Use Sikaflex 221 as sealing compound.
RA Disassembly of rear apron
