3 Series E36 M3 (S52) SAL
00 1 450
Assembly stand
In conjunction with:
All take-up supports
Note:
For engines and transmissions
Series:
E28, E30, E30/C, E30tou, E31, E32, E32/3,
E34, E34tou, E36, E36/2, E36/3, E36/5,
E36/7, E36/C, E36tou, E38, E38/3, E39,
E39PL, E39tou, E46, E46/16, E46/2, E46/3,
E46/5, E46/C, E52, E53, E60, E61, E63,
E64, E65, E66, E67, E70, E83, E85, E86,
E87, E90, E91, E92, E93, R50, R52, R53,
RR1
Engine:
M10, M20, M20B25, M20B27, M21, M30,
M30B34, M30Tur, M40, M41, M42, M43,
M43TU, M44, M47, M47TU, M50, M51, M52,
M52TU, M54, M56, M57, M57D25, M57D30,
M57T2, M57TU, M60, M62, M62VAN, M67,
M70, M73, M88, N40, N42, N45, N46, N51,
N52, N53, N54, N62, N73, S14, S38,
S50B30, S50B32, S50US, S52US, S54,
S62, W10, W11, W17
SI number:
1 02 87 (721)
Order number:
00 1 450
Assembly stand

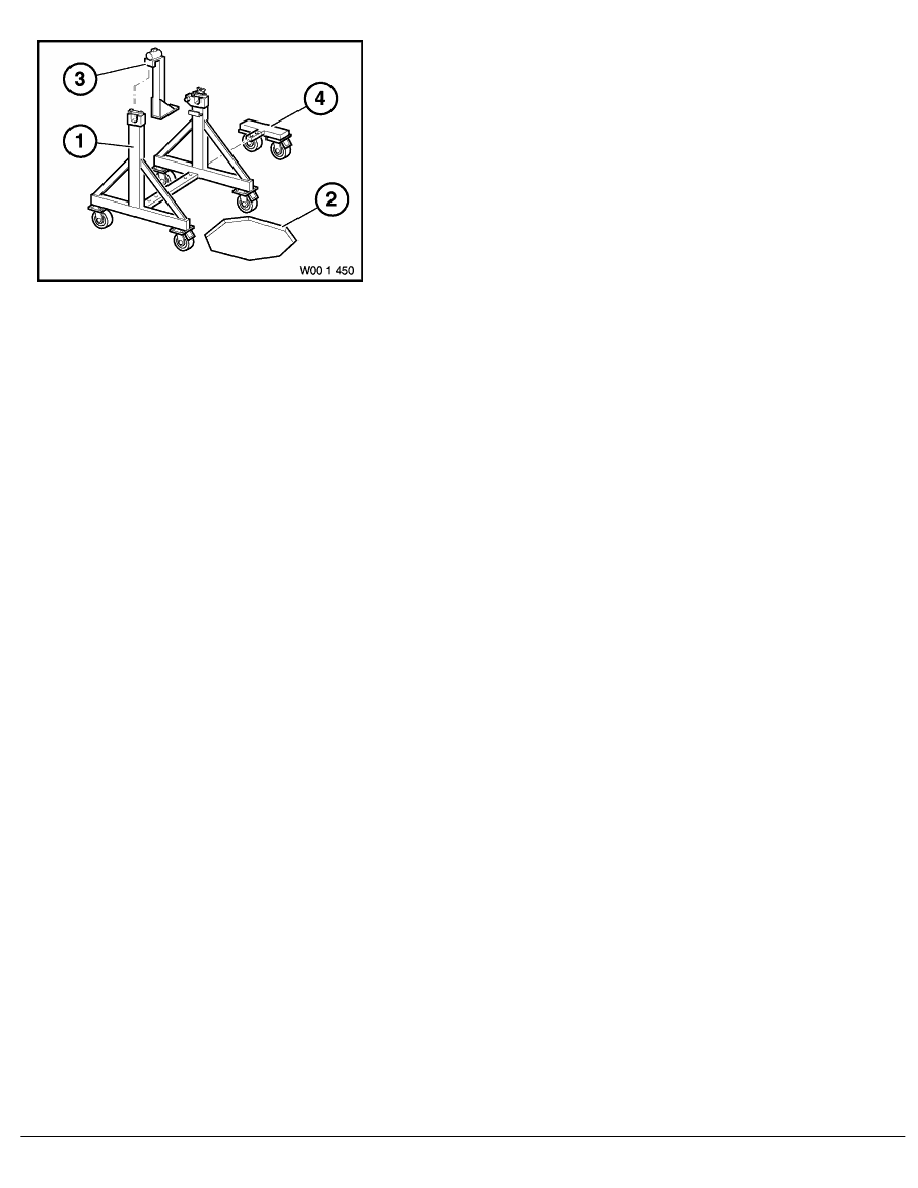

Consisting of:
1 = 00 1 451
Assembly stand for 8- and 12-cylinder
engines
Note: Engine: M60, M62, M70, M73
In conjunction with: 11 0 080 (for 8
cylinders) / 00 1 460 (for 12 cylinders)
2 = 00 1 452
Drip tray
3 = 00 1 453
Locating component
Note: For accommodating 4- and 6-cylinder
engines and transmissions, engine: M10,
M20, M30, M40, M41, M42, M43, M44, M50,
M52, M52, S14, S38, S50B30, S50B32,
transmission: all
In conjunction with: Mountings for engine
and transmission
4 = 00 1 454
Stand with 2 wheels
Note: For accommodating 4- and 6-cylinder
engines and all transmissions
SWZ Assembly stand
BMW AG - TIS
11.02.2013 04:54
Issue status (12/2007) Valid only until next DVD is issued
