3 Series E36 M coupe (S50) COUPE

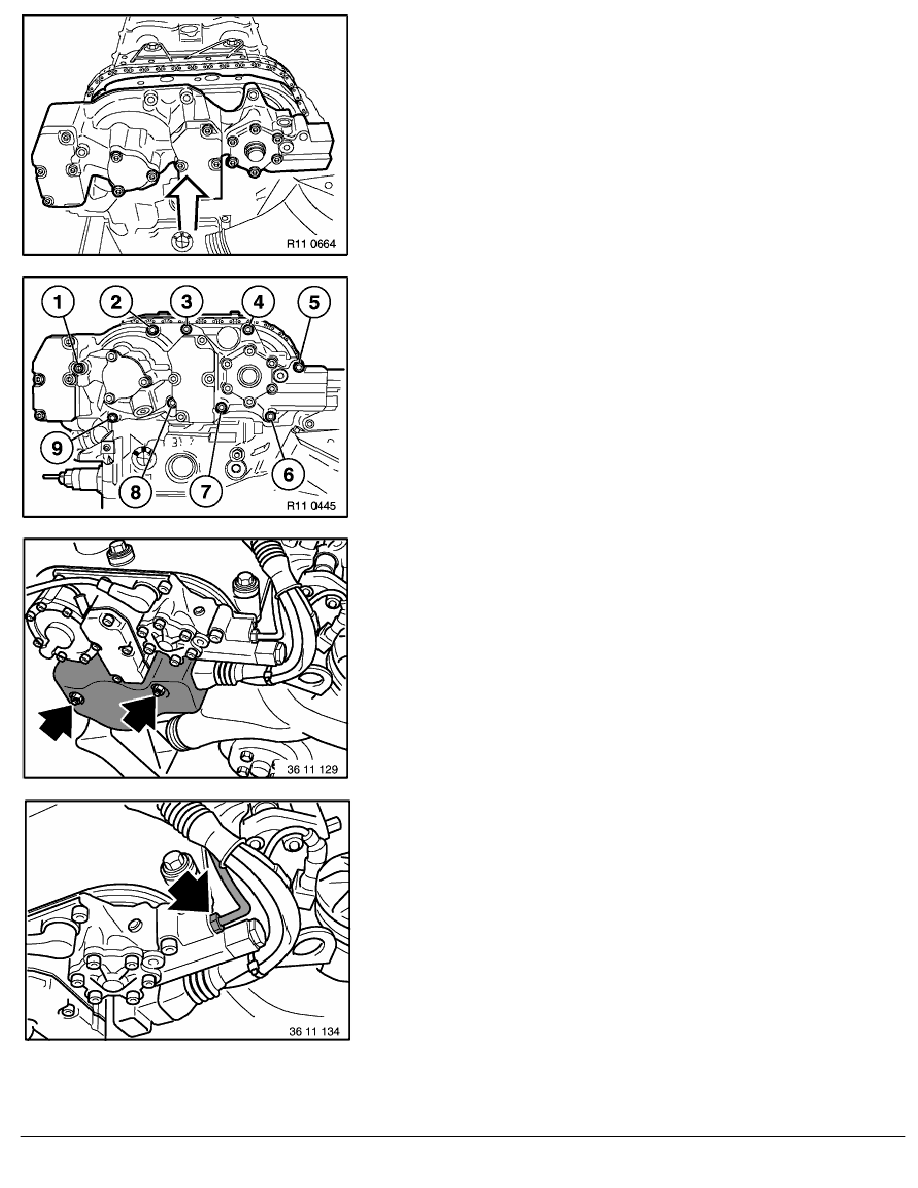

Push in VANOS control unit as far as timing case.
Note:
Secure ground tape with screw (7).
Insert screws (1 ... 9) in VANOS adjustment unit and tighten
down in two passes.
Insert screw connections in solenoid valves.
Fit cover to plug connections.
Fit oil pipe to VANOS adjusting unit.
Tightening Torque,
refer to Technical Data 11 36 9AZ.
Adjust valve clearance,
refer to 11 34 004.
Assemble engine.
RA Replacing all camshafts (S50 B32)
