3 Series E36 M coupe (S50) COUPE
51 21 003
Replacing door detent (lock striker), front left
or right (Z3 Roadster, M Roadster,
Z3 Coupé, M Coupé)
Remove rear side trim (lower section),
refer to 51 43 015

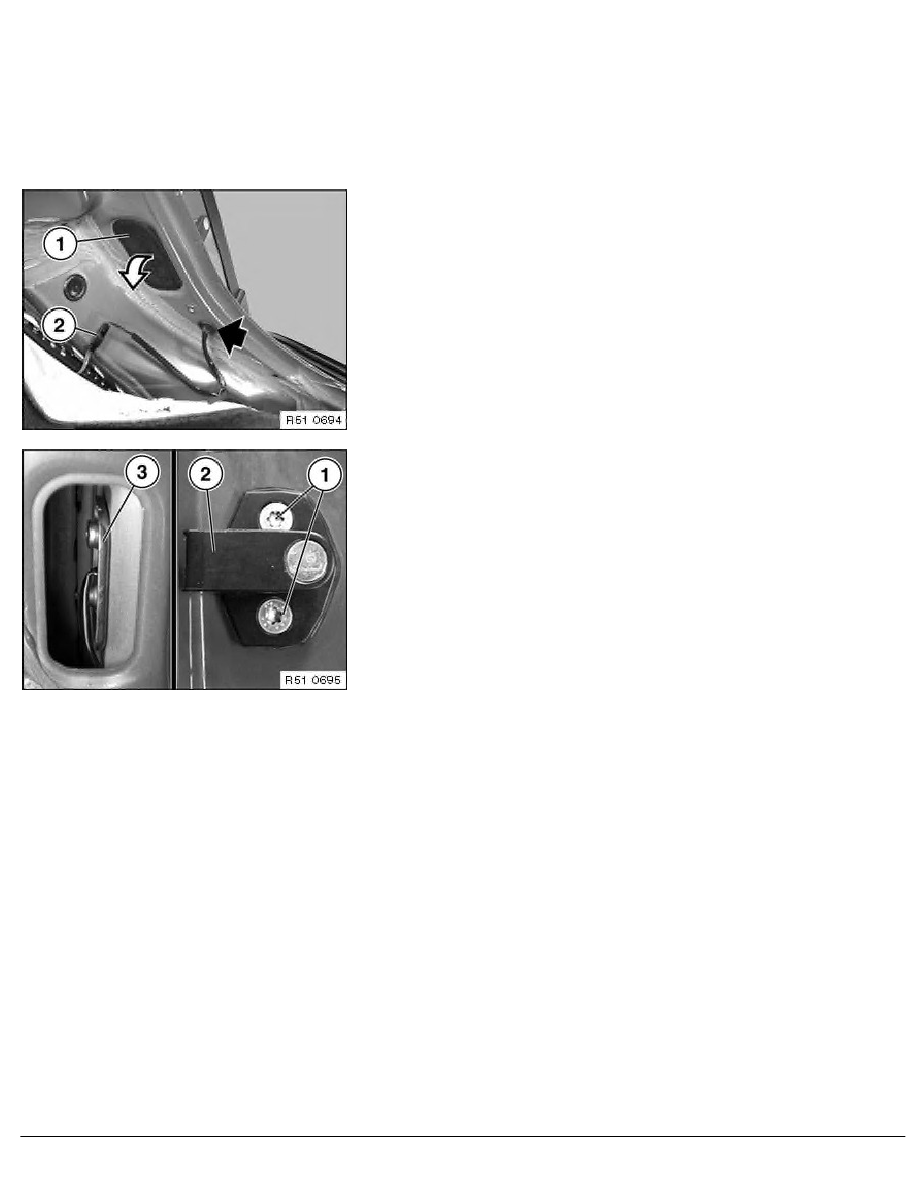

Lift off cover (1). Unfasten connector (2) and withdraw cable.
Unfasten screws (1) then remove threaded plate (2) and striker (3)
Installation:
Adjust striker.
