3 Series E36 M coupe (S50) COUPE
65 12 020
Removing and installing/replacing rear
loudspeaker (Z3 coupé, M coupé)

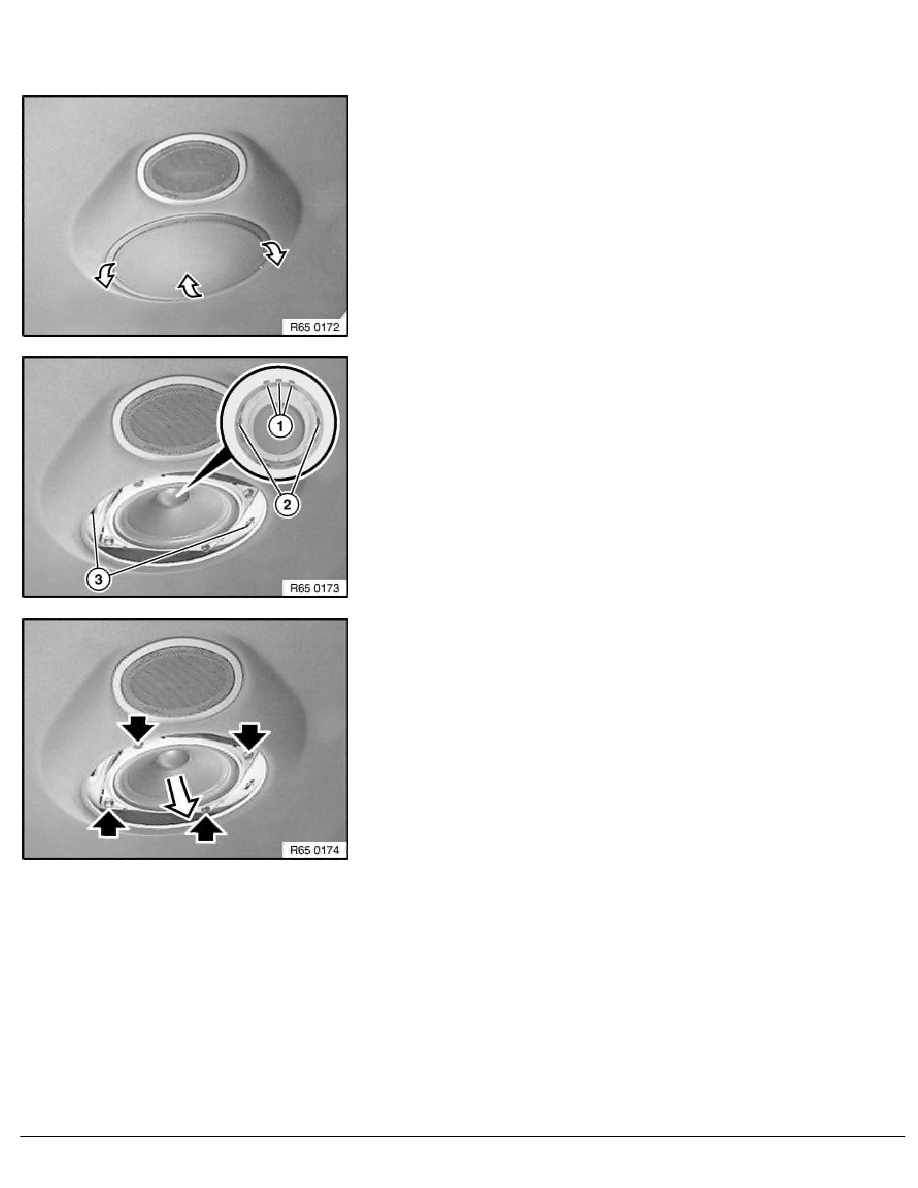

Unclip trim on side and pull out toward front.
Installation:
Push trim clamp (1) under headliner and engage lugs (2) in
clips (3).
Unfasten screw, pull off connector and remove loudspeaker.
RA Removing and installing/replacing rear loudspeaker (Z3 coupé, M coupé)
