3 Series E36 M coupe (S52) COUPE
51 16 360
Removing and installing glovebox, right
(Z3 Roadster, M Roadster, Z3 Coupé,
M Coupé)

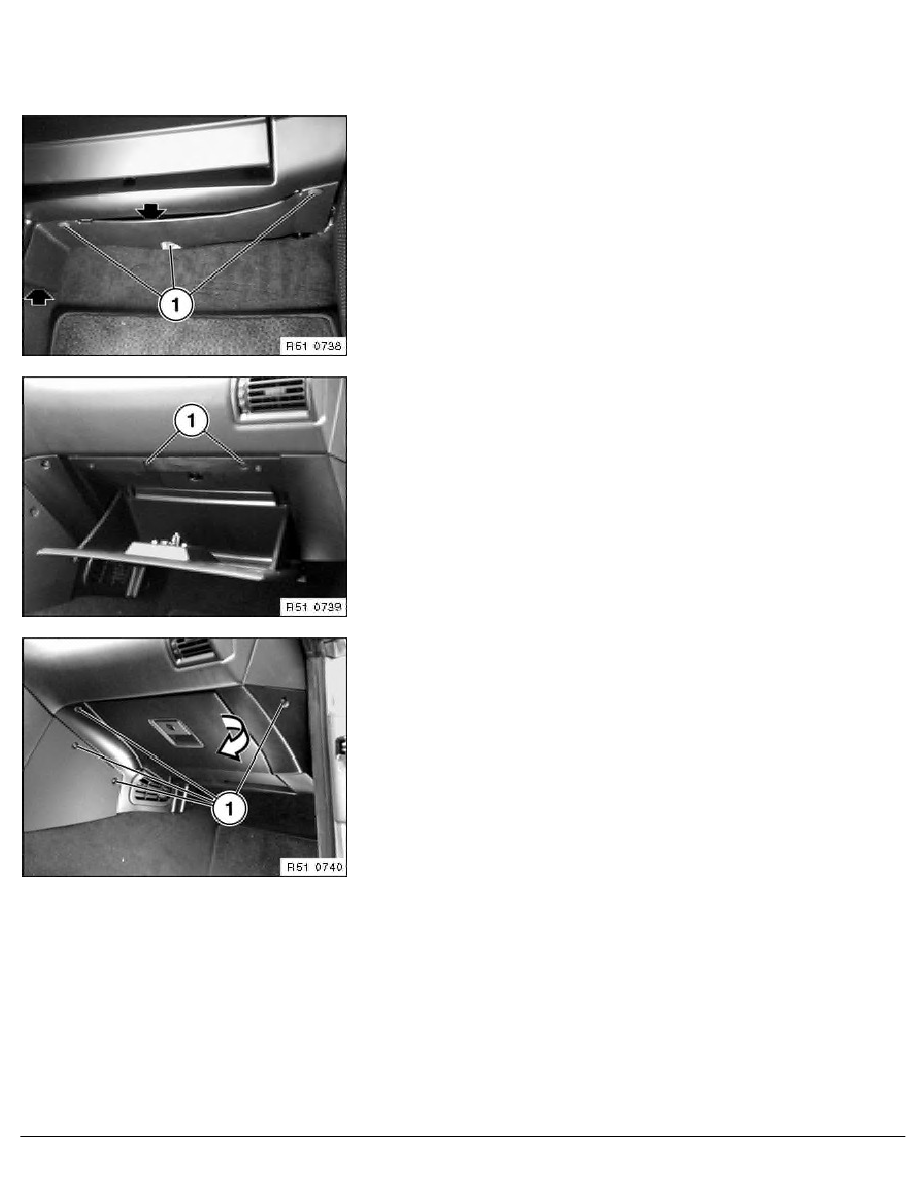

Release rotary clips (1) at bottom and lever out lower trim panel on
left (risk of damage) and center.
Open glove compartment cover.
Lift out finisher strips (1) and unfasten screws.
Close glove compartment cover.
Lift out finisher strips (1) and unfasten screws. Remove glove
compartment outward/downward.
RA Removing and installing glovebox, right (Z3 Roadster, M Roadster, Z3 Coupé, M Co
