3 Series E36 M coupe (S54) COUPE
51 49 003
Removing and installing/replacing trim for
rear window frame on left or right (Z3 coupé,
M coupé)
Removing and installing tailgate trim,
refer to 51 49 008.
Open trunk lid.

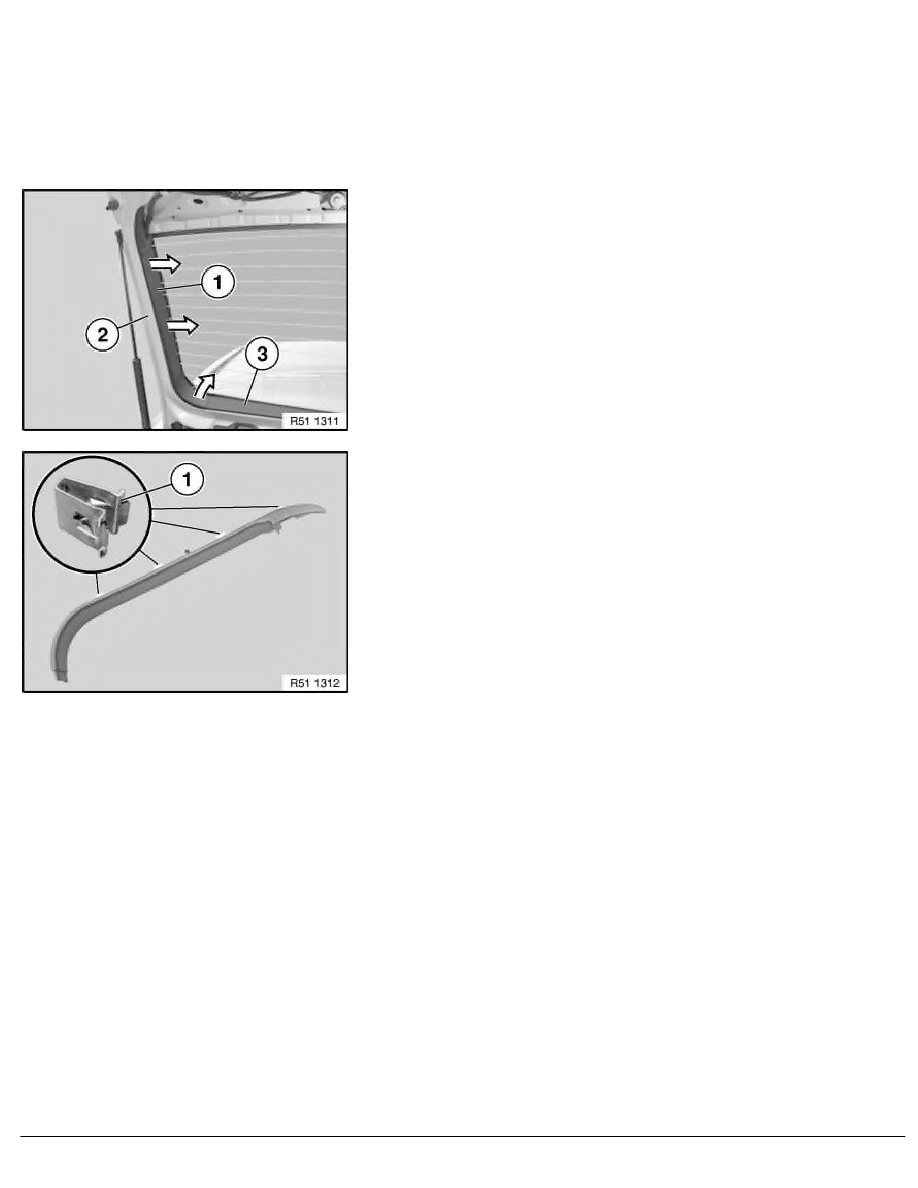

Pull trim (1) off rear window frame (2) and thread out of trim (3).
If necessary, pull clips (1) off trim (2) and insert in rear window
frame.
RA Removing and installing/replacing trim for rear window frame on left or right (Z
