3 Series E36 M roadst (S50) ROADST

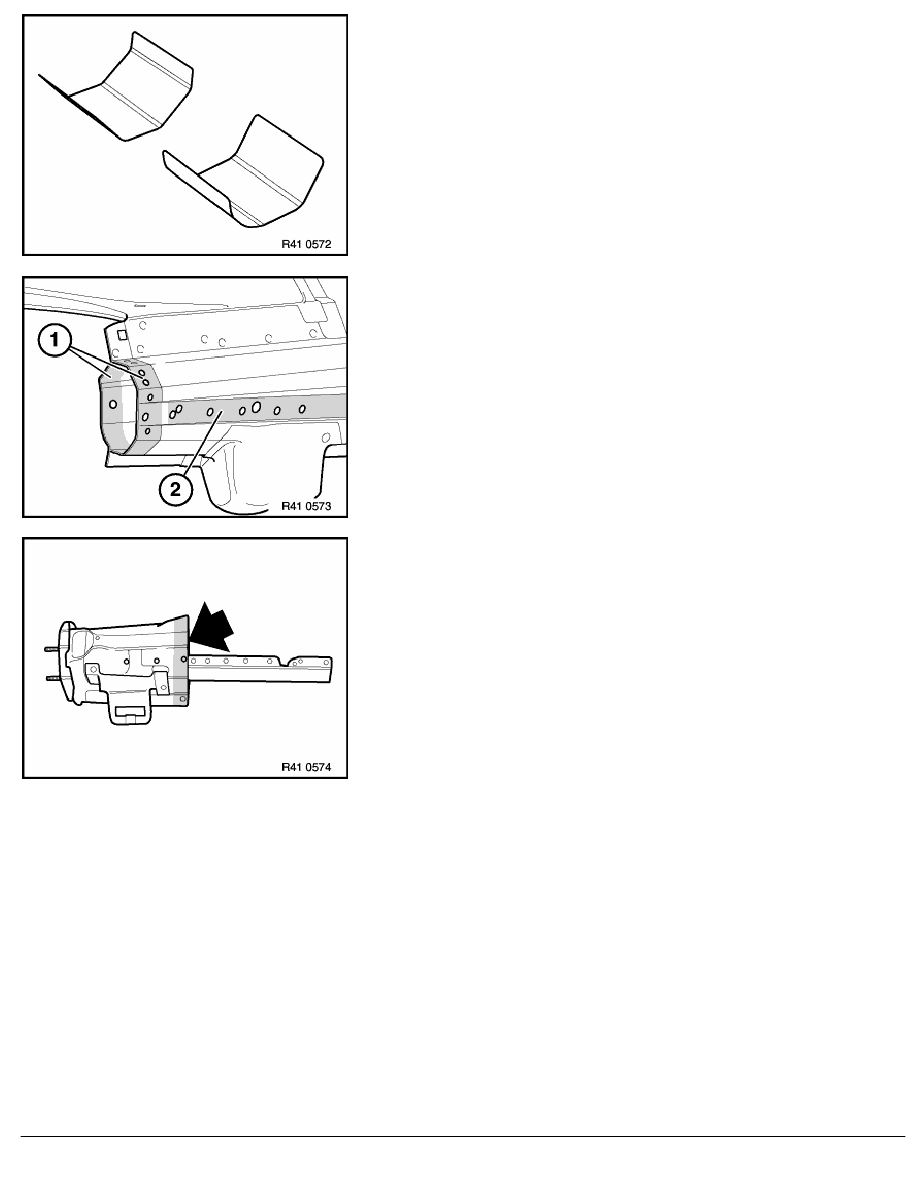

Make reinforcement plate from surplus sheet metal and adjust to
fit.
Width = 60 mm
Drill holes in engine support for plug welding with reinforcement
plates.
1 = Holes for plug welding reinforcement plates.
2 = Holes for plug welding reinforcement plate/impact absorber
support.
Clean connection surfaces of spare part.

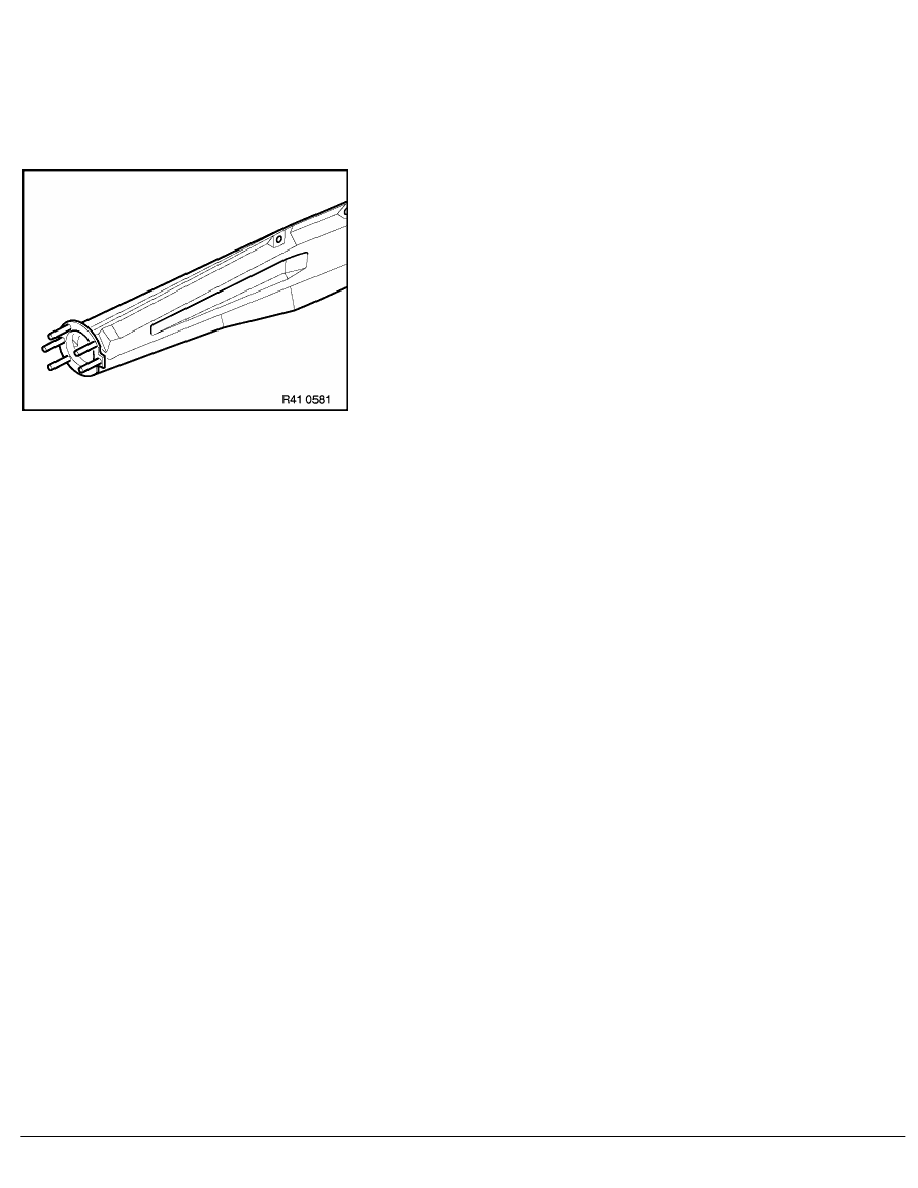

Drill holes in spare part for plug welding reinforcement plates.
Clean reinforcement plates and connection surfaces on engine
support and spare part.
Coat contact surfaces with zinc dust paint.
RA Replacing right engine support (partial replacement ahead of front axle) (Z3)
