3 Series E36 M roadst (S52) ROADST
51 46 050
Removing and installing/replacing finisher for
tail panel, top (Z3 Roadster, M Roadster)

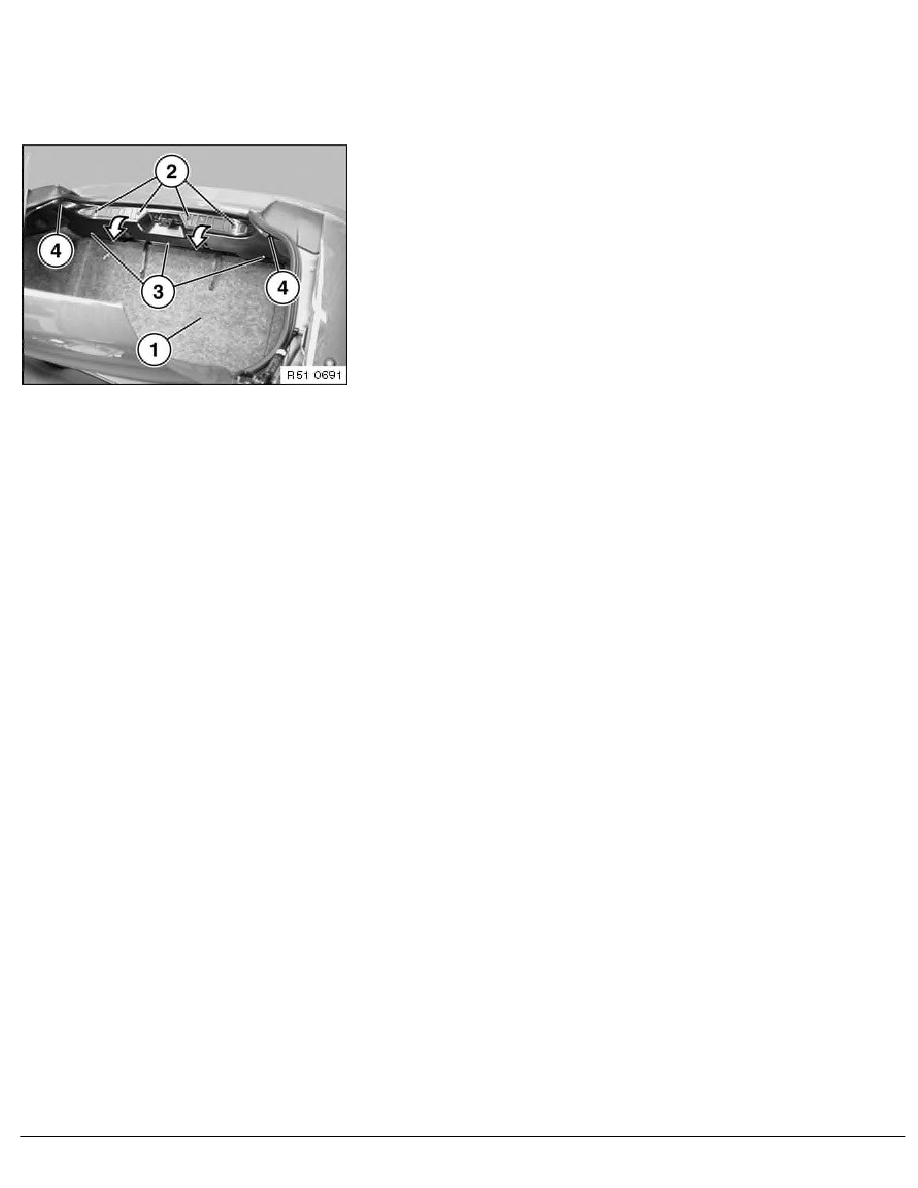

Remove hazard warning triangle, refer to Owner's Manual.
Remove floor mat (1).
Unfasten screws (2) and expanding rivets (3) and lift off finisher
strip.
If necessary, unfasten screws (4).
