51 11 001
Replacing front bumper (Z3 Roadster,
Z3 Coupé)
Unscrew and remove license plate
Remove complete front bumper,
refer to 51 11 000
Version with foglight:
Remove foglight insert,
refer to 63 17 000

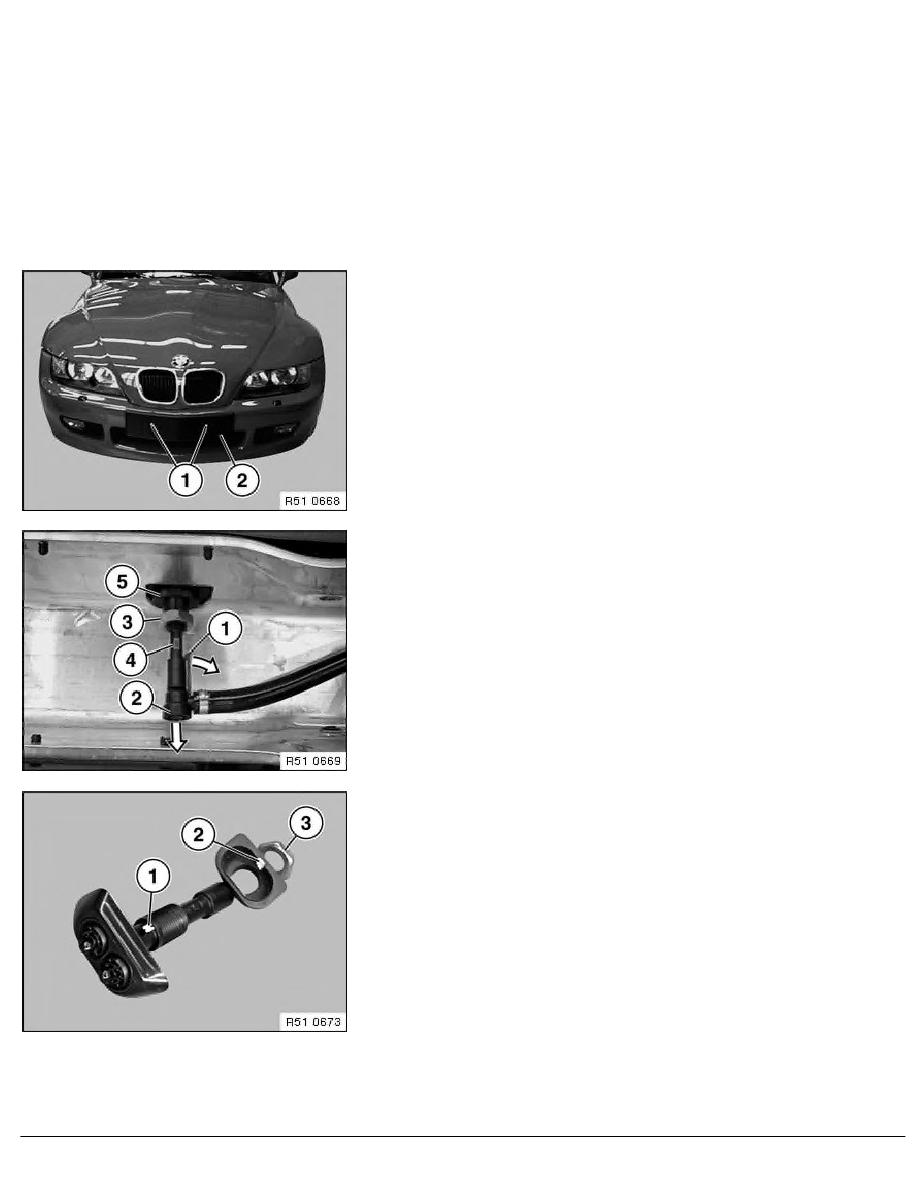

Replace center section (support member) of front bumper:
Unfasten screws (1) and remove license plate baseplate (2).
Version with headlight cleaning system:
Lift out detent (1) and remove hose connection (2).
Unfasten nut (3).
Remove spray nozzle (4) and left/right clamping ring (5).
Version with headlight cleaning system:
Installation:
Lug in spray nozzle (1) must be aligned with recess in
clamping ring (2).
Tighten with the nut (3).
