3 Series E36 Z3 coupe (M52TU) COUPE

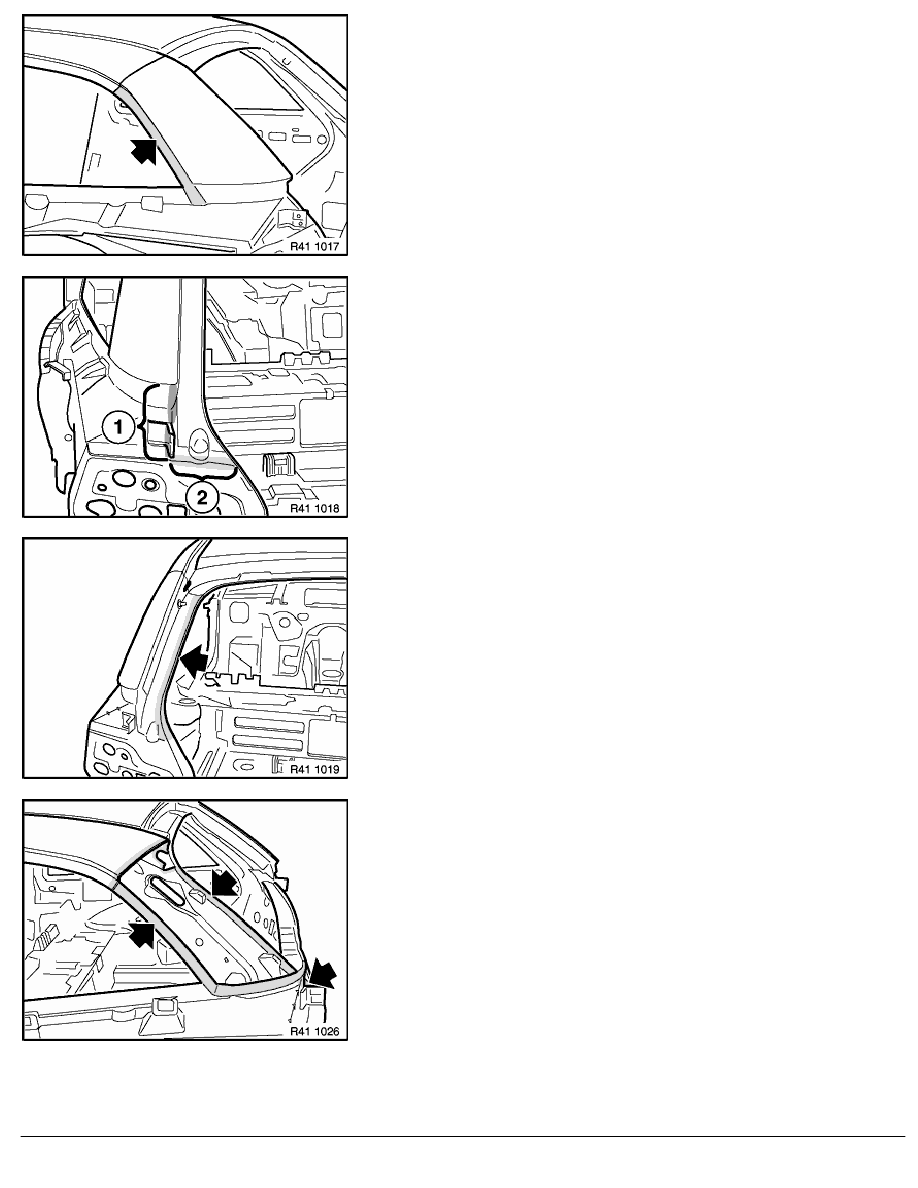

Expose mating surface for outside roof frame/side frame.
Expose mating surface for outside roof frame/outside rear side
section (1)
and
mating surface for outside roof frame/tail panel (2).
Expose mating surface for outside roof frame/inside side frame.
Open mating surfaces; to do so, drill out welding spots and, if
necessary, open hard solder seams.
Remove outside roof frame.
Remove scrap metal.
Straighten and grind joint surfaces.
RA Replacing left or right roof frame (partial replacement, C-pillar) (Z3 Coupé)
