3 Series E36 Z3 (M43TU) ROADST
18 00 020

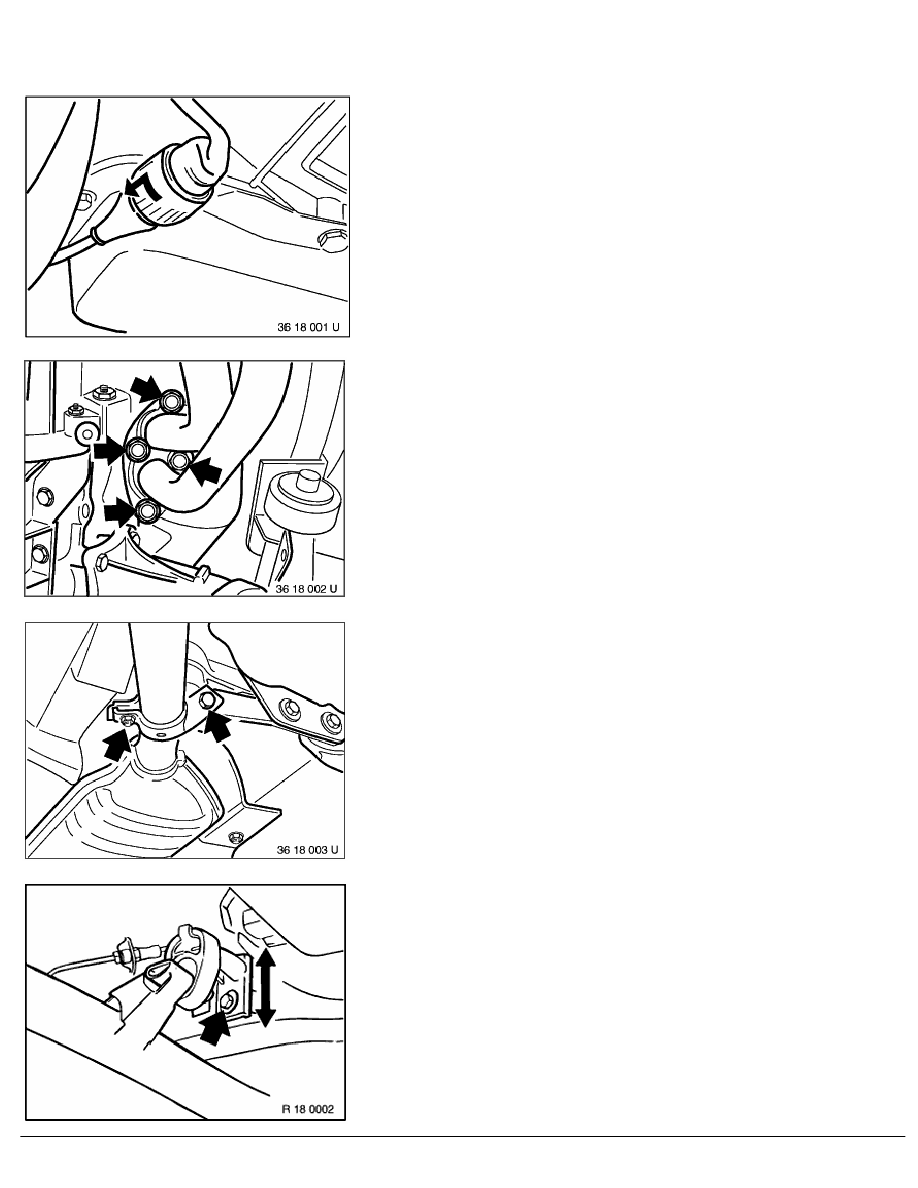

Removing and installing the complete
exhaust system (roadster)
Disconnect connector for oxygen sensor.
Unclip wires in holder.
Unscrew exhaust pipes on manifold.
Installation:
Check seal, replacing if necessary.
Replace self-locking nuts.
Coat threads with copper paste CRC, refer to BMW Parts Service.
Unscrew exhaust pipe on transmission holder.
Installation:
Secure holder (free of tension) following installation of complete
exhaust system.
Loosen the exhaust bracket at the rear axle carrier. Remove
rubber ring.
Installation:
Only after the installation of the exhaust system is complete, align
by pushing and tighten down the exhaust bracket.
RA Removing and installing the complete exhaust system (roadster)
