3 Series E46 316Ci (M43TU) COUPE
Note:

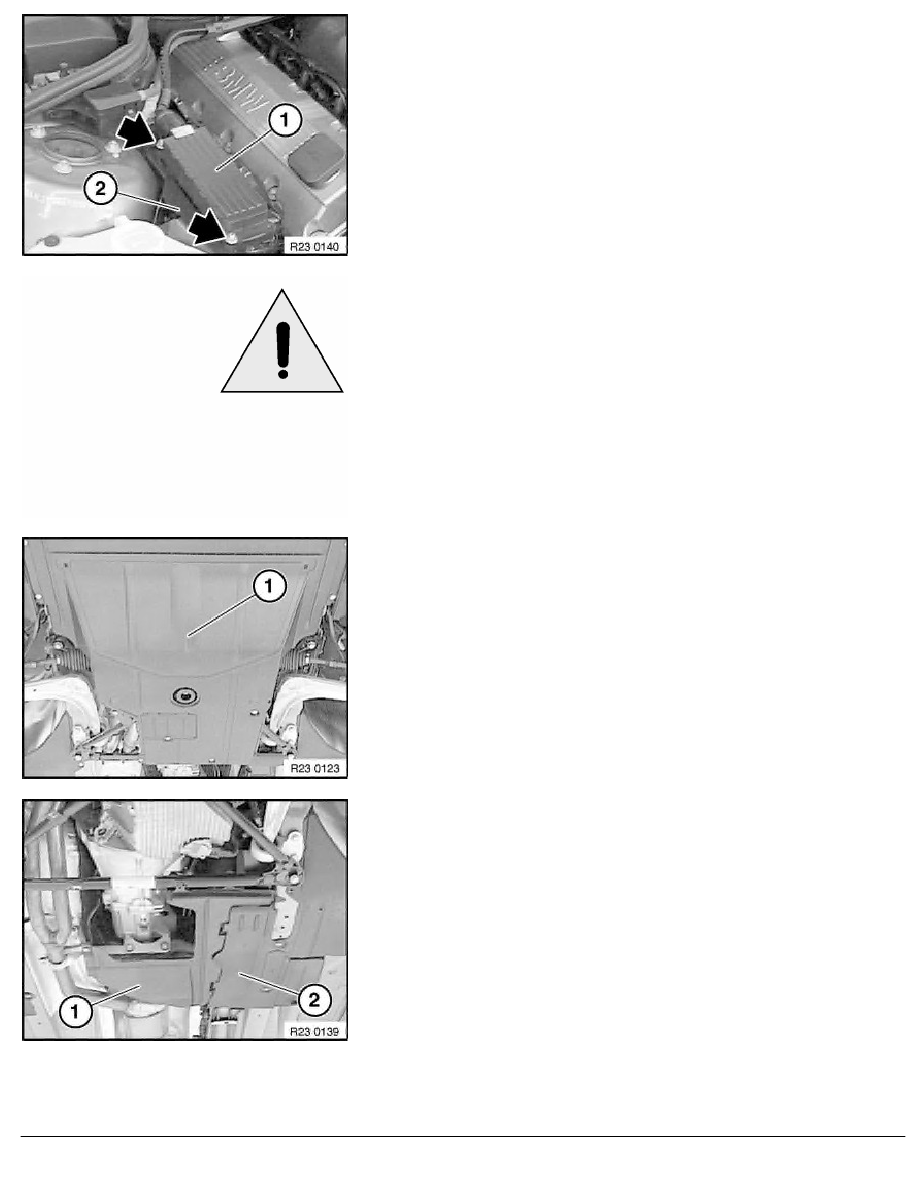

The ignition cables and plugs may be damaged if the engine
is tilted back. Therefore release nuts and remove ignition coil
(1) from fixture (2).
Caution!
The section "Removing and installing reinforcement plate"
contains important installation instructions.
Remove reinforcement plate.
Remove engine underguard (1).
Remove underbody protection (1 ... 2).
RA Removing and installing transmission (S5D 200G, M43TU)
