3 Series E46 316ti (N42) COMP
11 21 500
Replacing crankshaft (N40/N42/N45/N46)
Necessary preliminary tasks:
•
Remove engine.
•
Mount engine on assembly stand.
•
Remove cylinder head.
•
Remove oil sump.
•
Remove suction pipe of oil pump.
•
Remove vibration damper.
•
Remove flywheel.
•
Remove balancing shafts with oil pump.
•
Remove timing chain.
•
Remove all pistons.

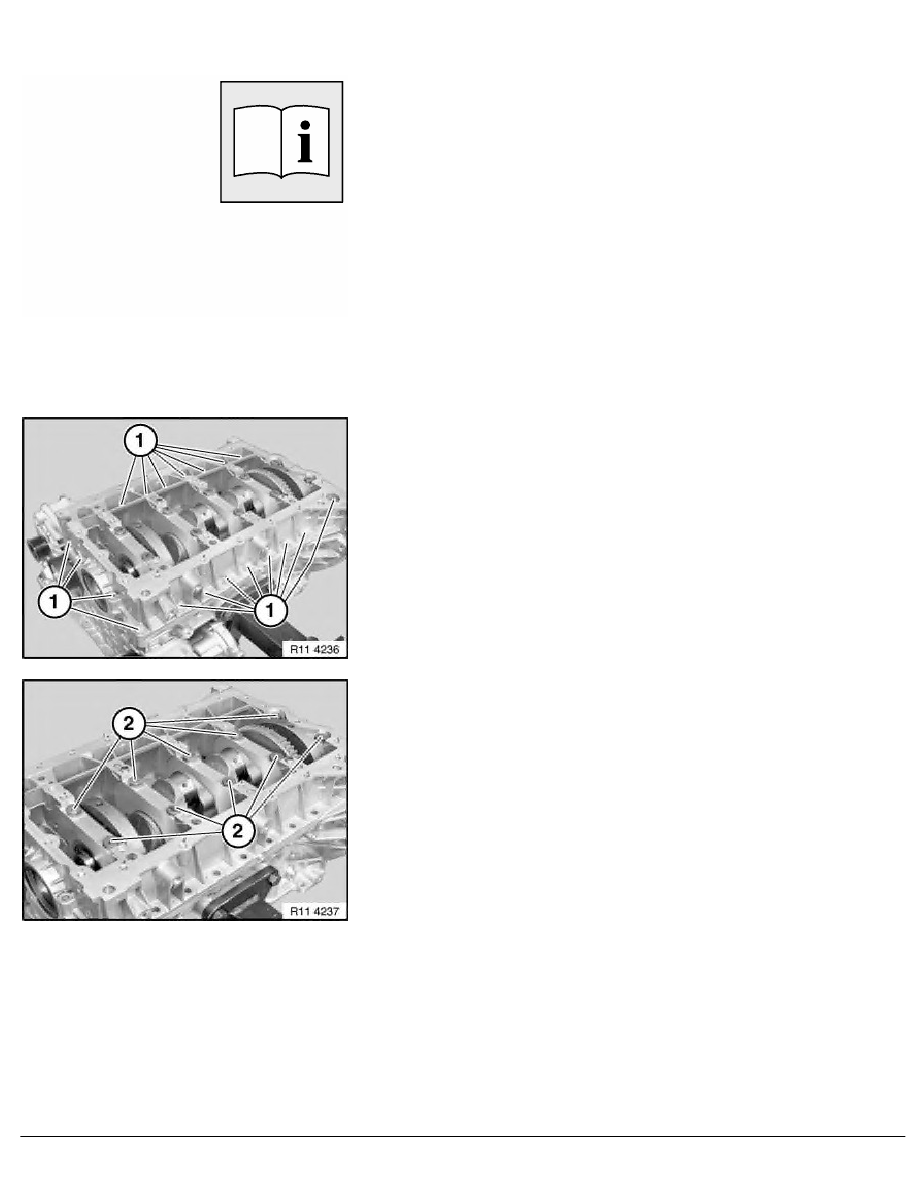

Release screws (1).
Release screws (2).
Remove lower crankcase.
