3 Series E46 316ti (N42) COMP

Page 1
background image

33 21 ...

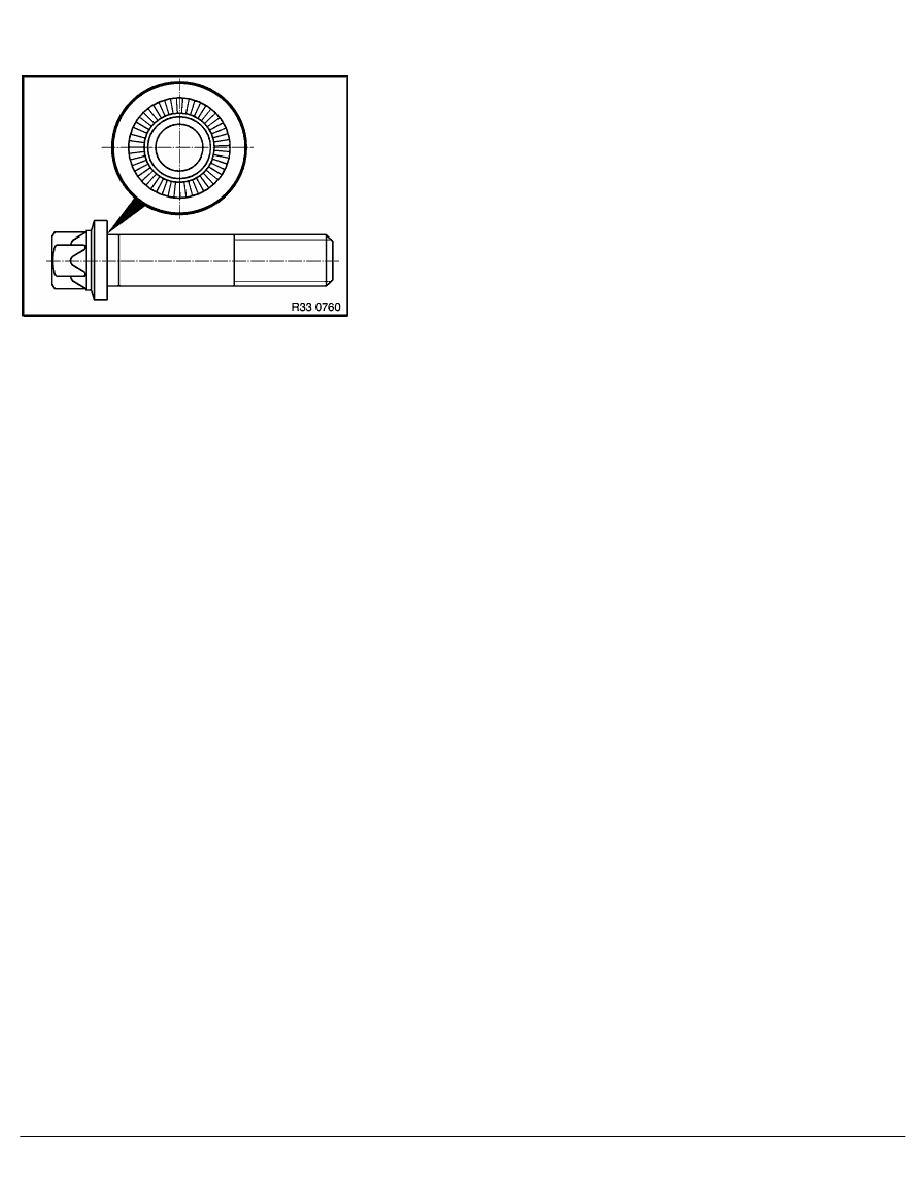

Ribbed teeth

Important!

Bolts with ribbed teeth must be replaced after they have been
released!

RA  Ribbed teeth

BMW AG - TIS

25.01.2013  17:31

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
