3 Series E46 318d (M47) TOUR
12 51 001
Replacing wiring harness section for engine
(M47)
Read fault memory of DDE control unit. Switch off ignition.
Follow instructions for disconnecting and connecting battery,
refer to general information in MG 12.
Disconnect and cover battery negative lead.
Remove intake air manifold,
refer to 11 61 050.
Remove engine underguard.

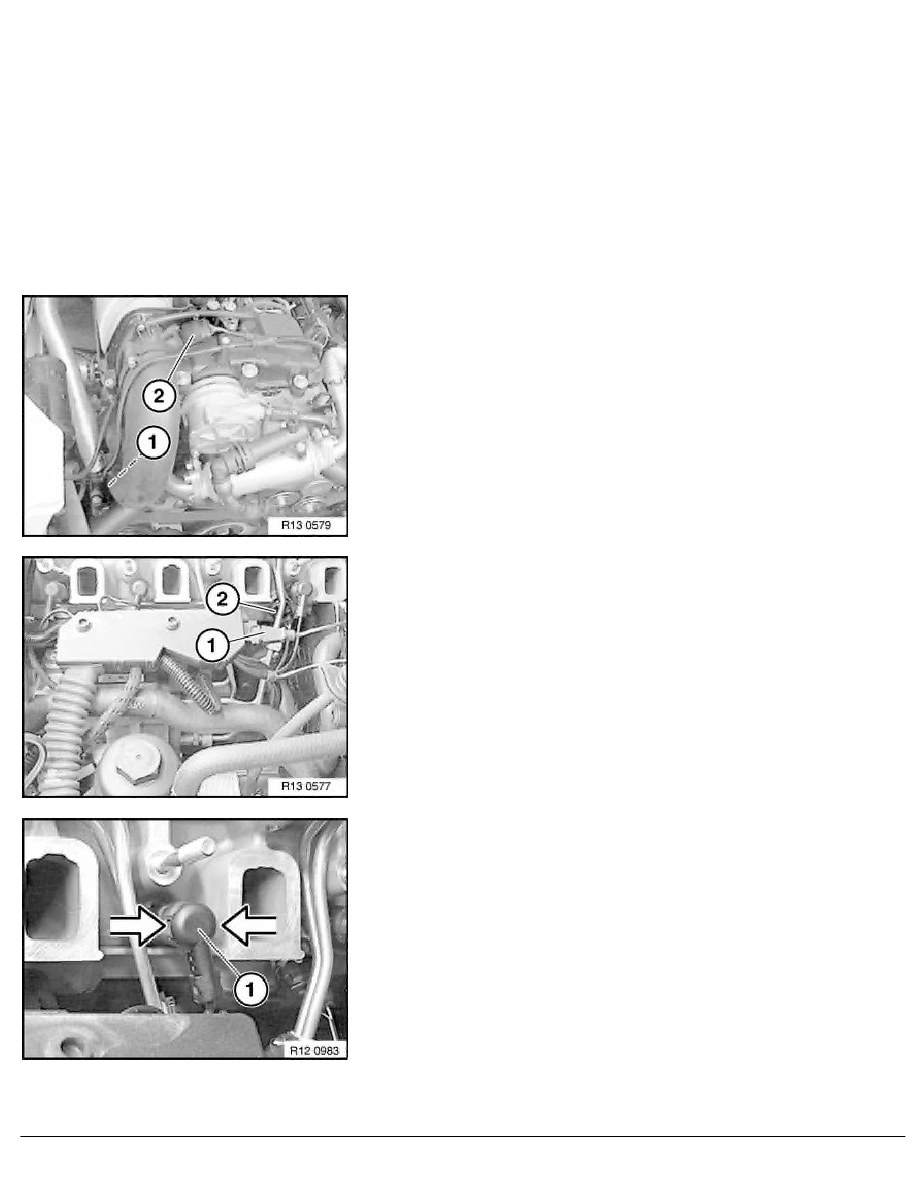

Disconnect plug connections (1) on pressure converter for
variable turbine geometry and (2) on air-mass flow sensor.
Disconnect plug connections (1) for needle motion sensor on
cable channel and (2) on coolant temperature sensor.
Press together locks of connectors (1) on glow plugs and
disconnect all connectors.
