3 Series E46 318i (N46) TOUR
00 9 310
Assembly wedges (set in plastic case)
Minimum set: Mechanical tools
Note:
For straightening and assembly jobs on
vehicle bodies, e.g. fitting trim panels,
removing window weatherstrips, repairing
small-scale dents, removing residual
adhesive materials, measuring gap widths,
levering out trim panel parts
Series:
E12, E21, E23, E24, E28, E30, E30/C,
E30tou, E31, E32, E32/3, E34, E34tou, E36,
E36/2, E36/3, E36/5, E36/7, E36/C, E36tou,
E38, E38/3, E39, E39PL, E39tou, E46,
E46/16, E46/2, E46/3, E46/5, E46/C, E52,
E53, E60, E61, E63, E64, E65, E66, E67,
E68, E70, E71, E81, E82, E83, E85, E86,
E87, E88, E90, E91, E92, E93, R50, R52,
R53, R55, R56, RR1, RR2
SI number:
1 25 05 230
Order number:
00 9 310

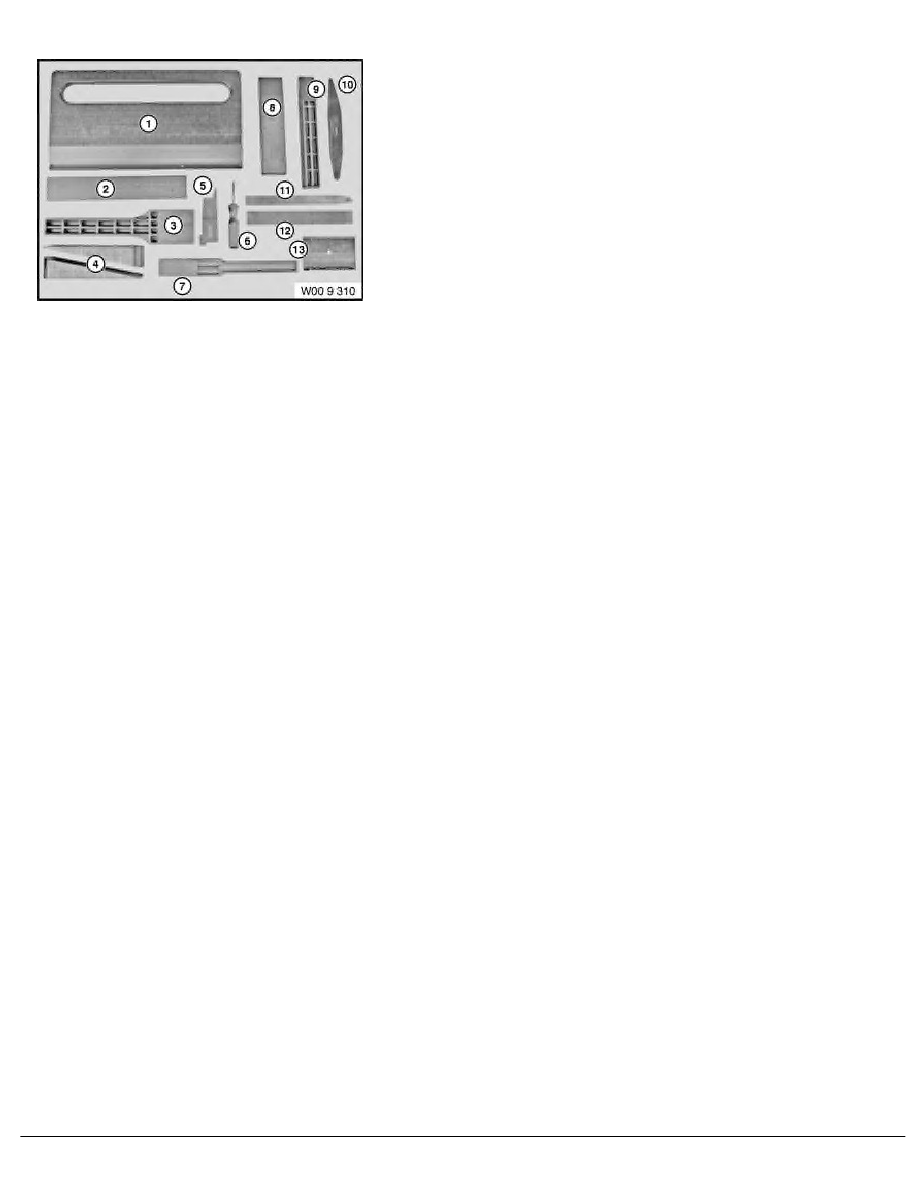

Assembly wedges (set in plastic case)
Consisting of:
1 = 00 9 311
Trim remover
2 = 00 9 312
Striking wedge, square
3 = 00 9 313
Striking wedge, large
4 = 00 9 314
Adjusting wedges (2 x)
5 = 00 9 315
Gap wedge
6 = 00 9 316
Sealing lip wedge
7 = 00 9 317
Trim panel wedge
8 = 00 9 318
Universal wedge
9 = 00 9 319
Striking wedge, small
10 = 00 9 321
Fishbone
11 = 00 9 322
Plastic wedge
12 = 00 9 323
Cleaning wedge (scraper)
13 = 00 9 324
Trim remover (metal plate)
Note: For removing stem trims from E60
14 = 00 9 329
Case with inlay for assembly wedges
In conjunction with: 009310
SWZ Assembly wedges (set in plastic case)
