3 Series E46 318ti (N42) COMP

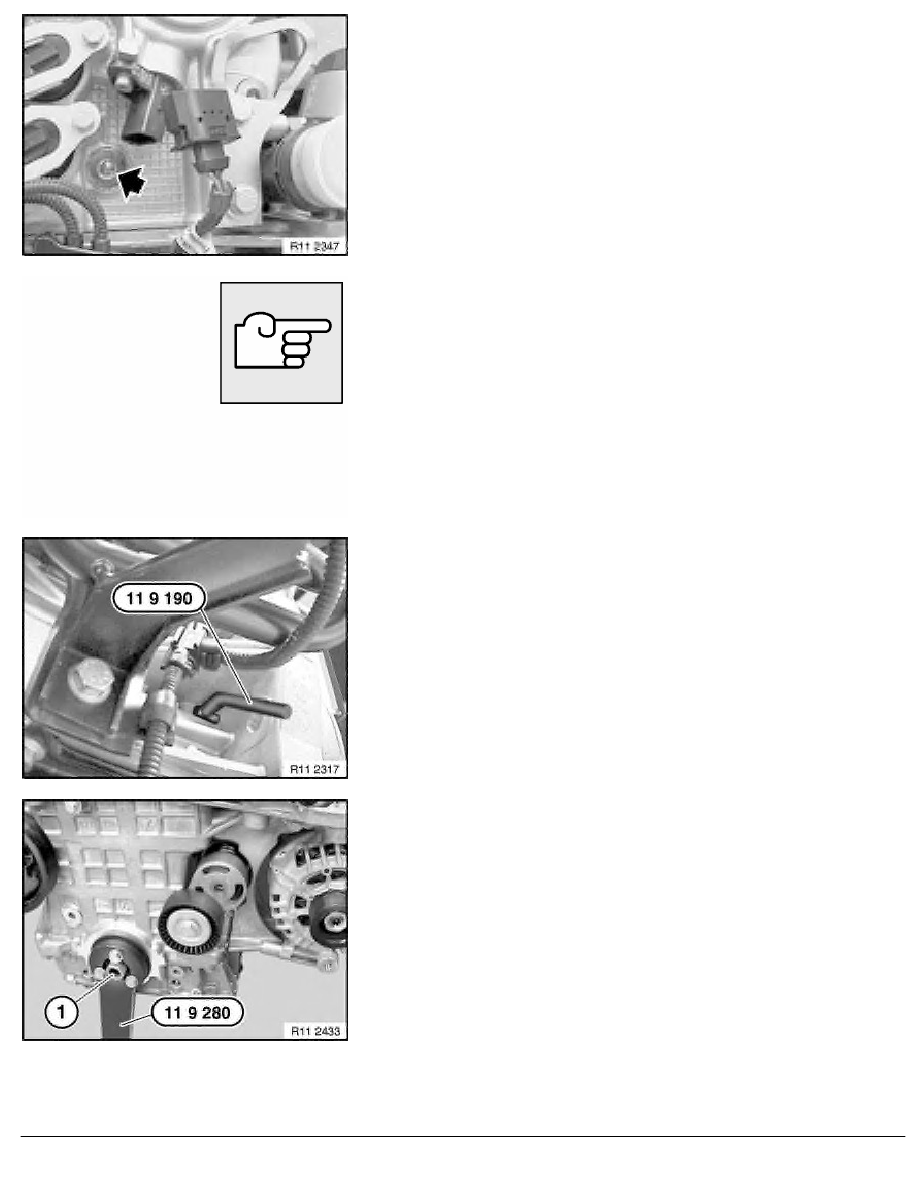

Replace sealing ring on plug.
Insert plug and tighten down.
Tightening torque 25 Nm.
Install plug for pulse generator of inlet camshaft.
Note:
Lock on plug must snap audibly into place.
Install inlet and exhaust adjustment unit.
Install positioning motor for eccentric shaft.
Install cylinder head cover.
Install all spark plugs.
Install ignition coils.
Replace front crankshaft radial seal.
Remove special tool 11 9 190 / 11 5 120 .
Mount special tool 11 9 280 on hub for vibration damper.
Tighten down central bolt (1).
Tightening torque, 11 23 6AZ .
RA Replacing timing chain (N42/N46)
