3 Series E46 318ti (N42) COMP

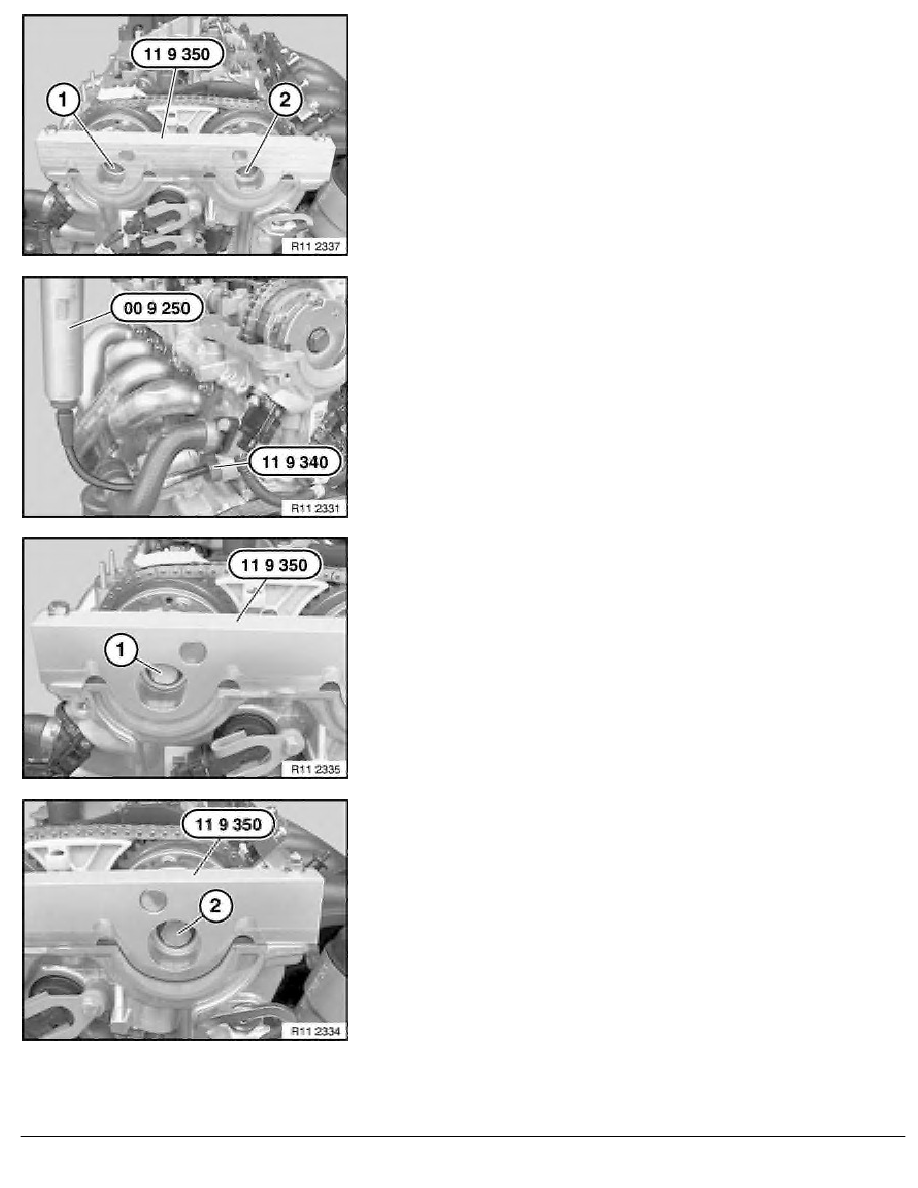

Slacken screw (1) of exhaust adjustment unit by a half turn.
Slacken screw (2) of inlet adjustment unit by a half turn.
Fit socket on screws (1 and 2) and tighten by hand without
play.
Pretension clamping rail by turning adjusting screw with special
tool 00 9 250 or commercially available torque wrench to
0.6 Nm.
Tighten down screw (1) of exhaust adjustment unit.
Tightening torque 11 36 16AZ
.
Tighten down screw (2) of inlet adjustment unit.
Tightening torque 11 36 16AZ
.
RA Adjusting camshaft timing (N42 / N46)
