3 Series E46 318ti (N42) COMP

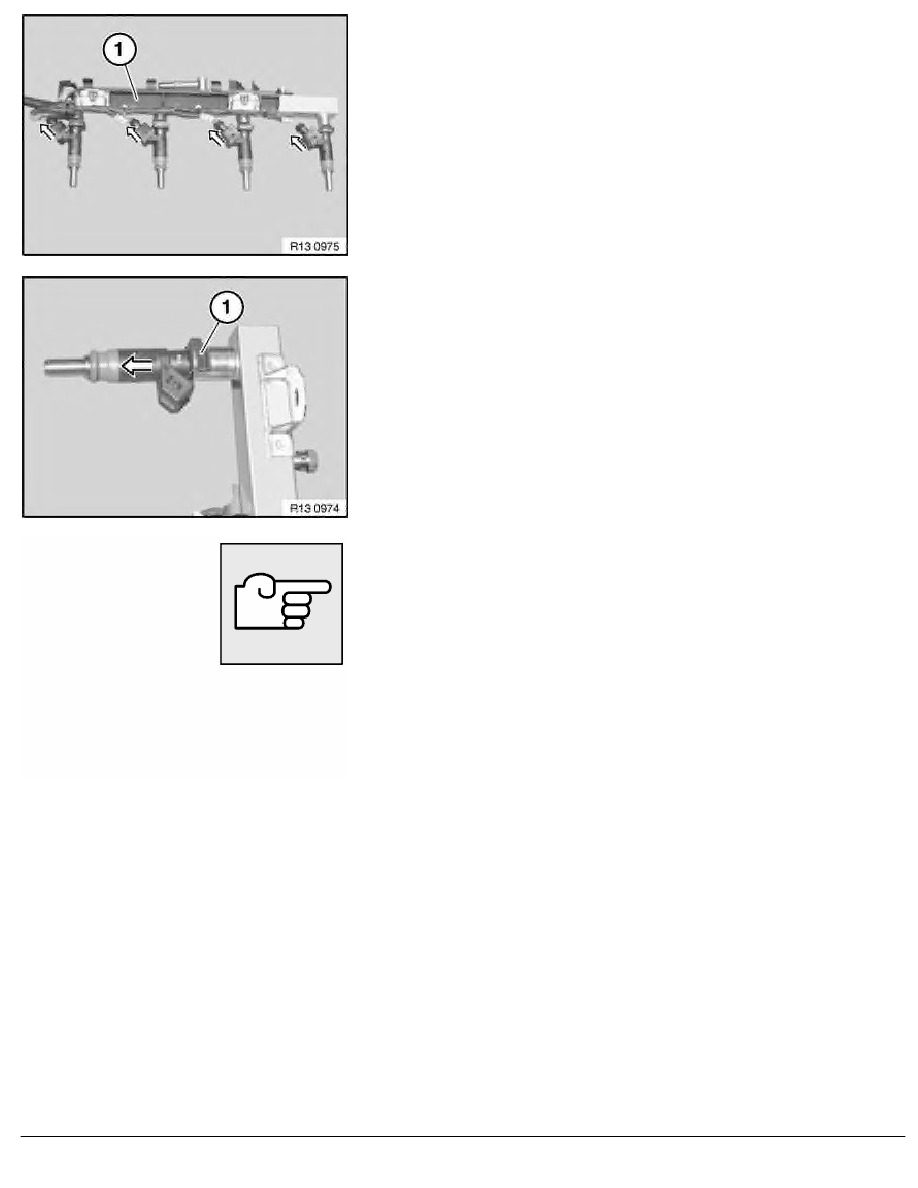

Unlock plug and detach.
Unlock cable strip (1) and remove.
Detach retainer (1).
Detach fuel injector from injection pipe.
Installation:
Check O-rings, replace if necessary.
Insert fuel injector fully into injection pipe then pull out until groove
is flush with edge of injection pipe.
Push on retainer.
Installation:
Coat rubber sealing rings of fuel injectors with antiseize agent
in order to facilitate installation of injection pipe.
RA Replacing complete injection pipe (N42 / N40)
