3 Series E46 318ti (N42) COMP
13 54 250

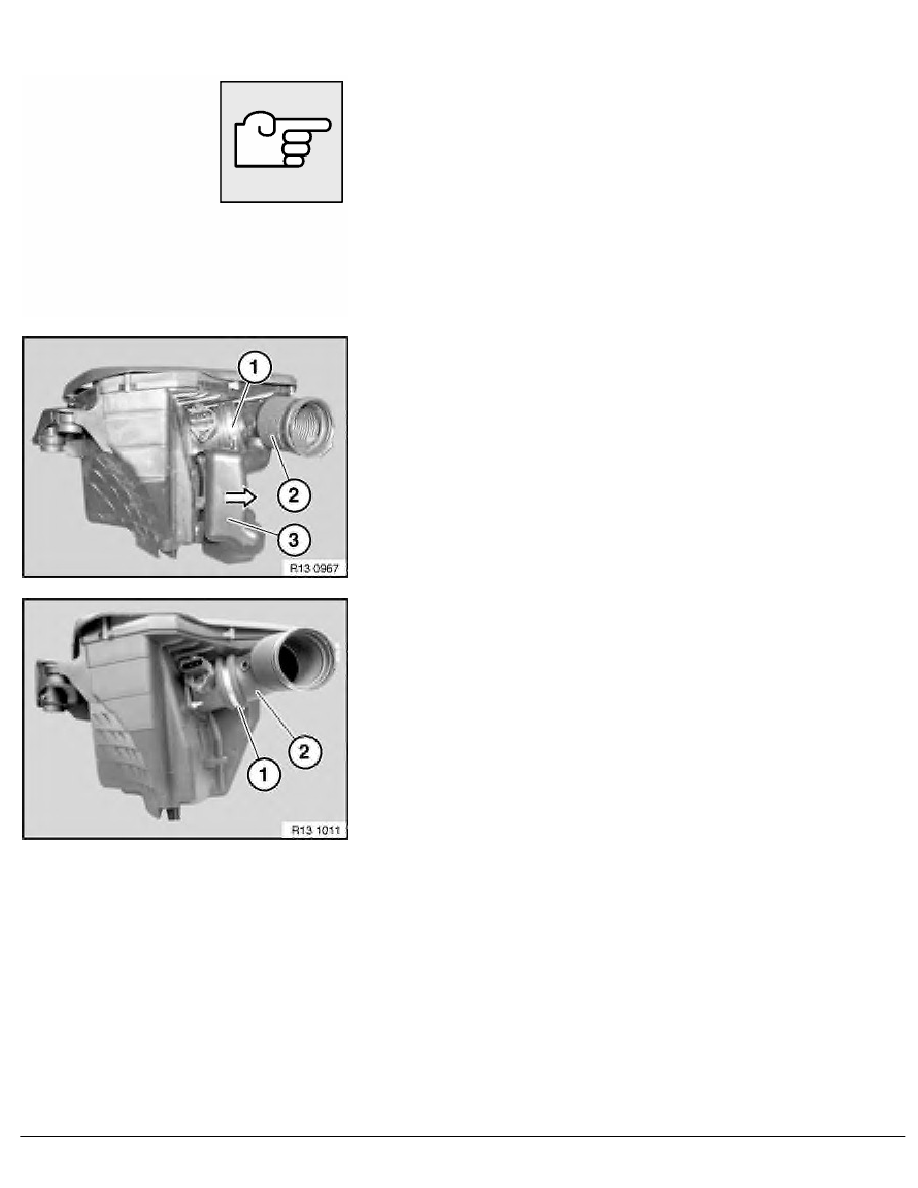

Replacing intake hose (N42 / N40)
Turn off ignition.
Remove intake filter housing.
N42 only:
Release hose clamp (1).
Detach intake hose (2) with resonance chamber (3).
N40 only:
Release hose clamp (1).
Detach intake hose (2).
RA Replacing intake hose (N42 / N40)
BMW AG - TIS
12.02.2013 02:42
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
