3 Series E46 318ti (N42) COMP
51 12 000
Removing and installing complete rear
bumper (compact)

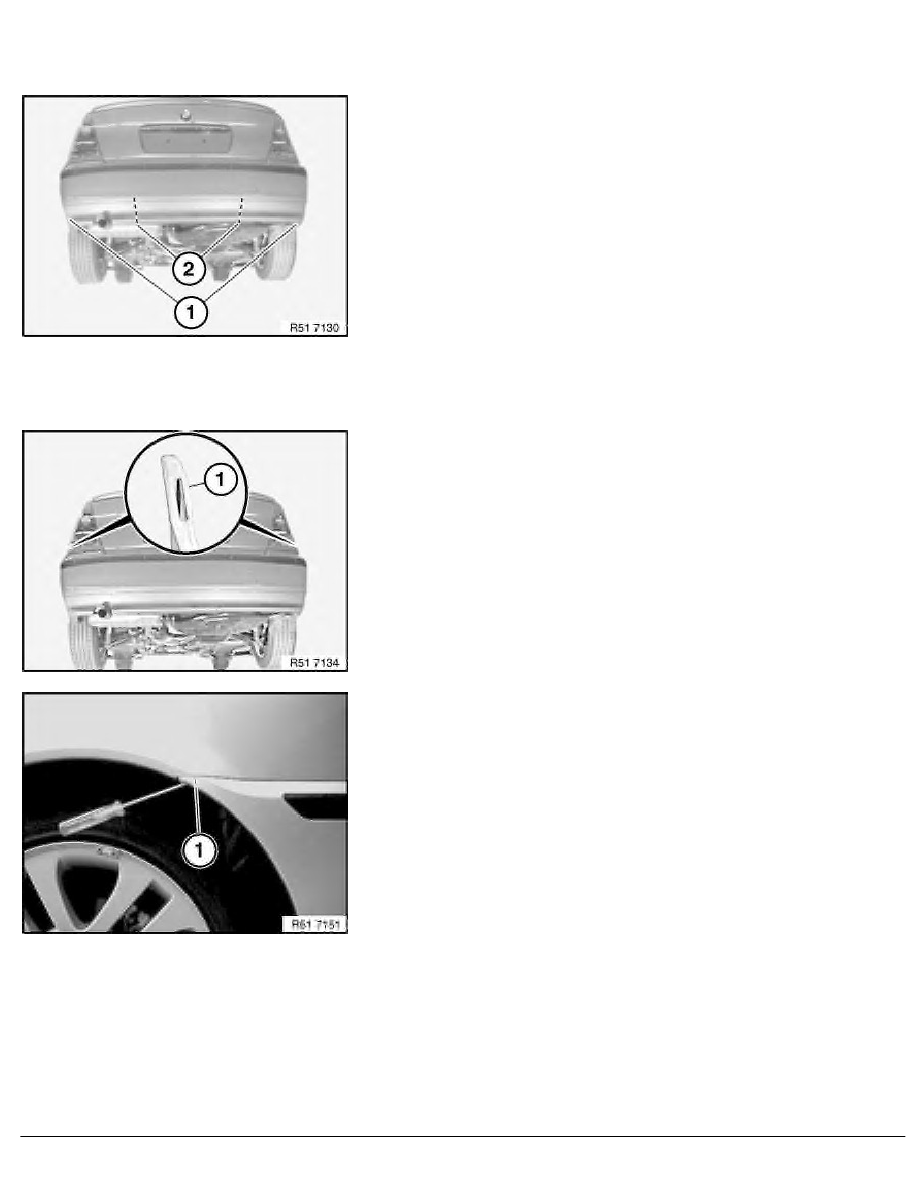

Release clips (1).
Release screws (2) on impact absorber.
Installation:
Tightening torque: 51 12 2AZ
.
Caution!
In the following work step, the link (1) on the catch must not be
damaged.
Carefully press detent lug (1) downwards.
Detach bumper.
Installation:
If necessary, carefully press detent lug (1) upwards.
RA Removing and installing complete rear bumper (compact)
