3 Series E46 318ti (N42) COMP

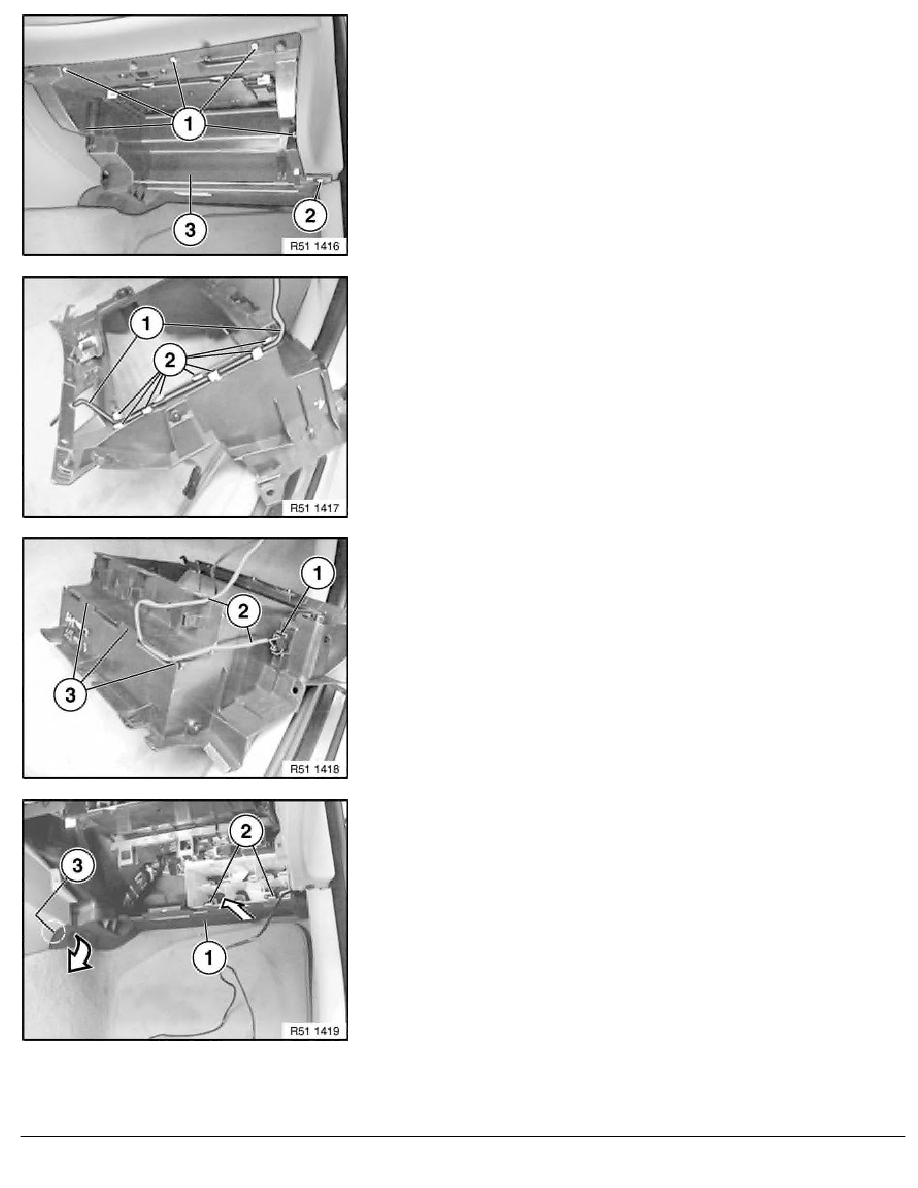

Release screws (1).
If necessary, release pin (2).
Remove insert (3) towards bottom.
Feed out wire (1) for glovebox light from guides (2).
Disconnect plug (1) and feed out cable (2) from guides.
Press panel (1) somewhat to rear and remove from guides (2).
Feed out clip (3) on panel (1) to front/right.
RA Removing and installing instrument panel trim
