51 47 101

Removing and installing/replacing luggage
compartment floor trim panel

Open rear lid.

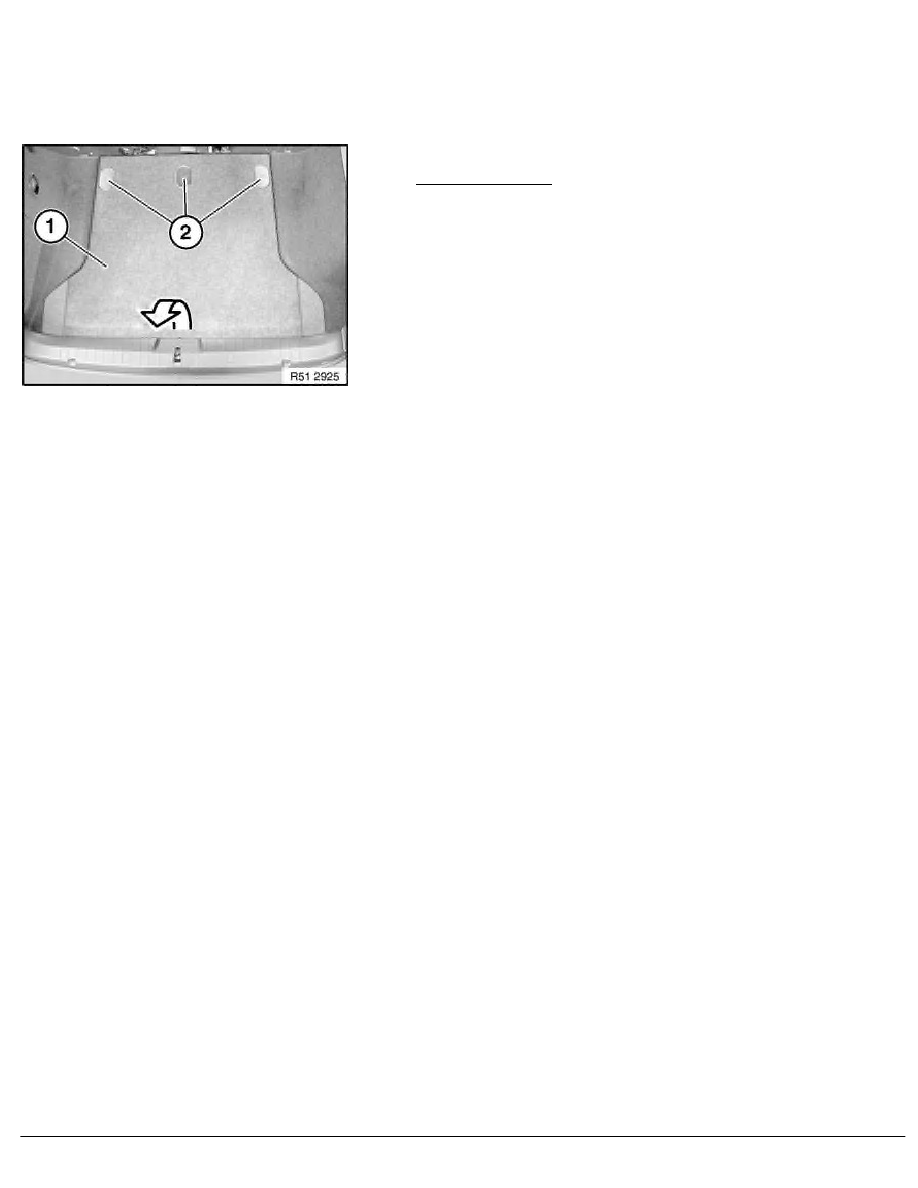

Remove luggage compartment floor trim panel (1).

Replacement only:

Lever out cover caps (2).

RA  Removing and installing/replacing luggage compartment floor trim panel

BMW AG - TIS

12.02.2013  10:12

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
