Replacing control unit for left xenon headlight
Warning!
Version with xenon headlights: Danger to life due to high
voltage! Therefore disconnect all components from voltage
supply before removal.
Work on the entire xenon lighting system (ignition unit, control
unit and lamp) may only be carried out by specialist
personnel.
M54, N42 only:
Remove intake filter housing.
M47TU only:
Release water valve for heater from mounting and place to one
side.

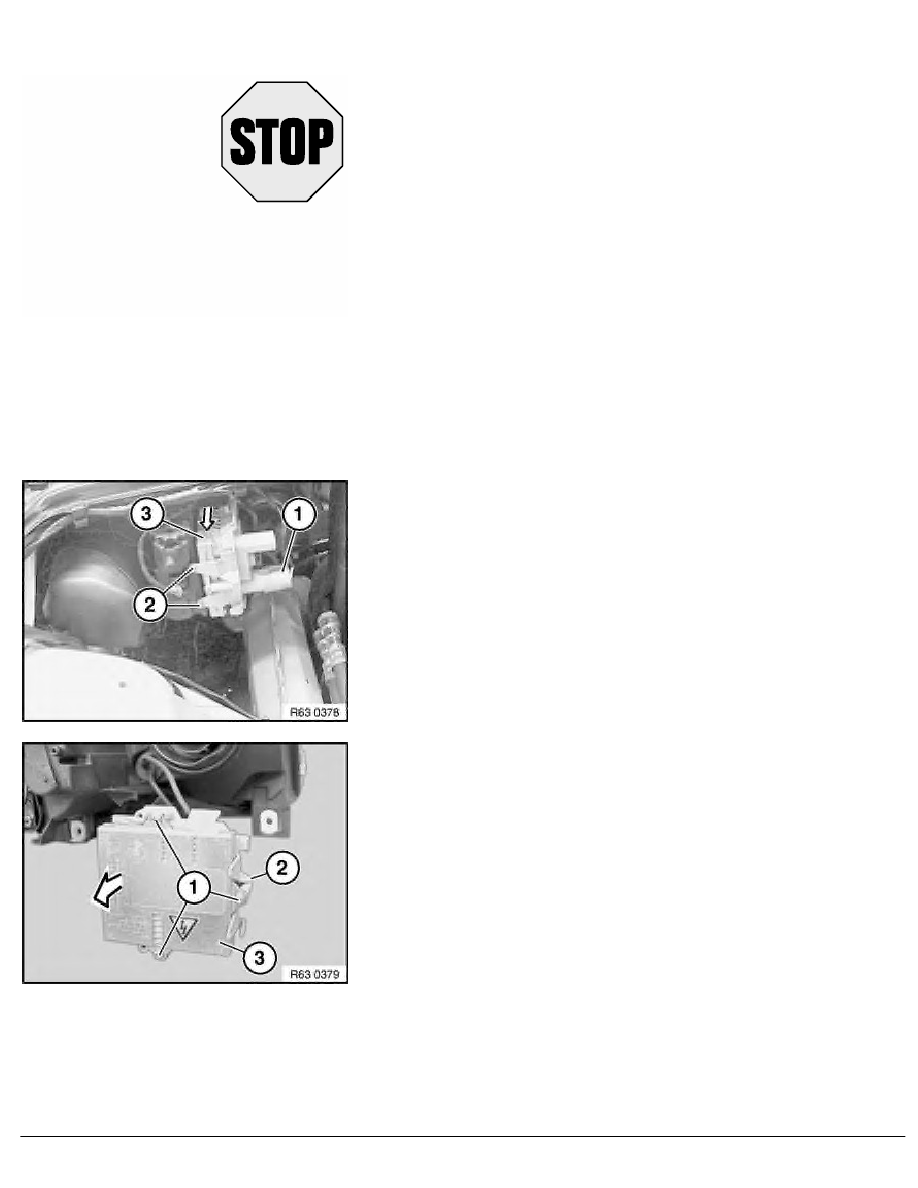

Disconnect plug connection (1).
Loosen screws (2).
Pull out control unit for xenon headlight (3) in direction of arrow
and secure against falling out.
Installation:
Ensure correct cable routing.
Note:
For purposes of clarity, illustration shows removed headlight.
Loosen screws (1).
Detach control unit for xenon headlight (3) in direction of arrow
from holder (2) and remove.
Installation:
Ensure correct seating of seal and correct cable routing.
