3 Series E46 318ti (N42) COMP
63 31 080
Removing and installing/replacing luggage
compartment light

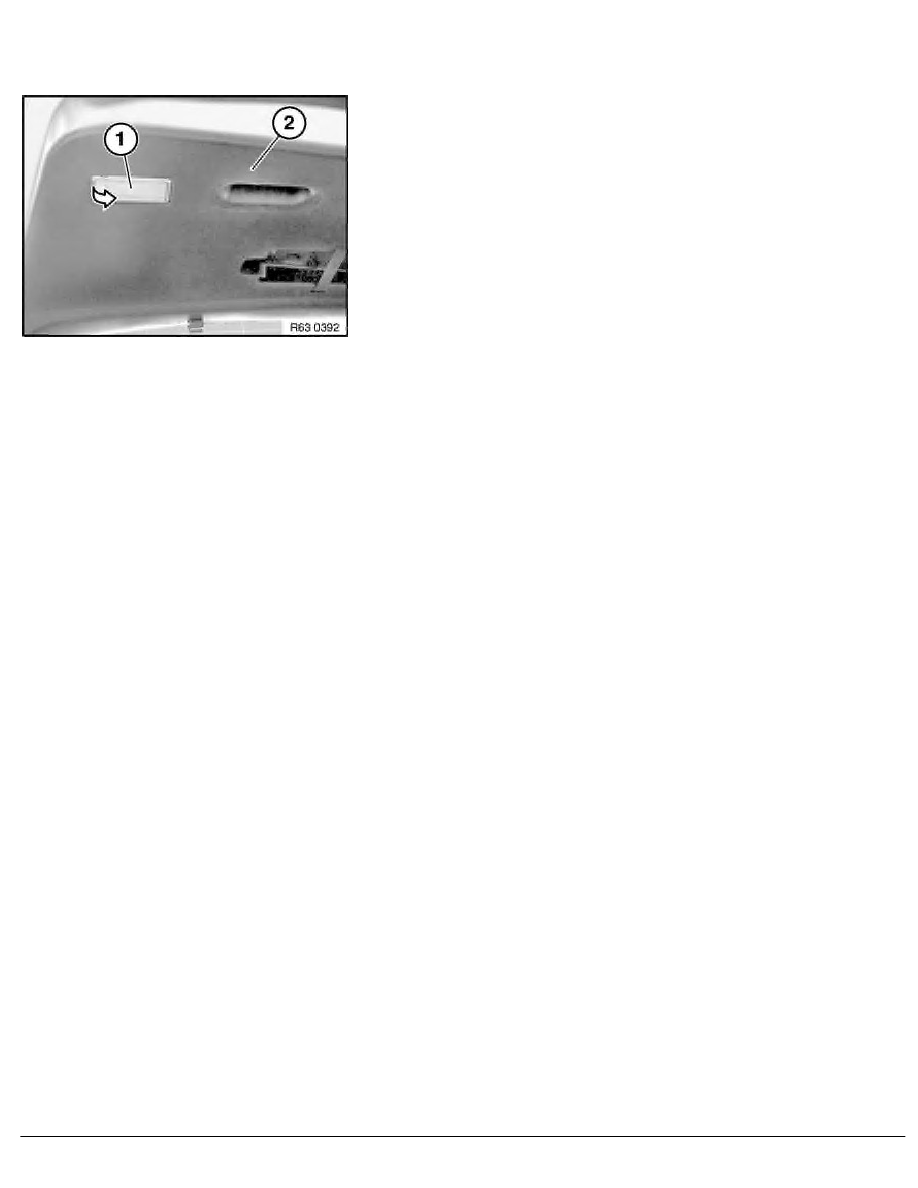

Lever luggage compartment lamp (1) in direction of arrow out of
rear lid panel at bottom (2).
Disconnect plug connection underneath and remove luggage
compartment lamp (1).
RA Removing and installing/replacing luggage compartment light
BMW AG - TIS
12.02.2013 12:50
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
