3 Series E46 318ti (N42) COMP
66 20 540
Removing and installing/replacing a rear
ultrasonic transducer (Park Distance Control)
Remove complete rear bumper.

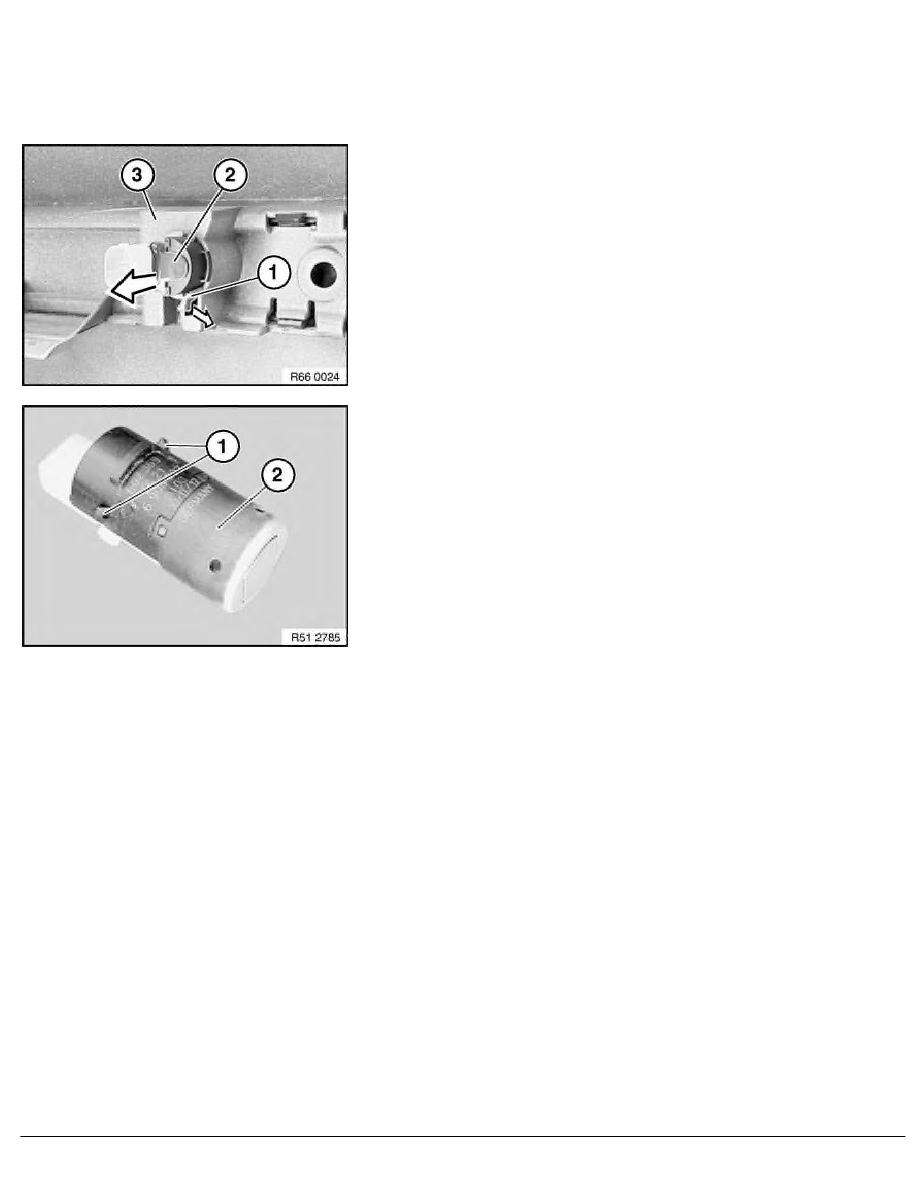

Lever out catch (1) in direction of arrow.
Pull ultrasonic transducer (2) in direction of arrow out of
bumper (3).
Installation:
Detent lugs (1) of ultrasonic transducer (2) must not be
damaged.
