3 Series E46 318ti (N46) COMP
41 34 041
Replacing tail panel
Follow instructions for body repairs.
For stripping and rigging operations, refer to texts on KSD
CD (FR number 41 34 041).

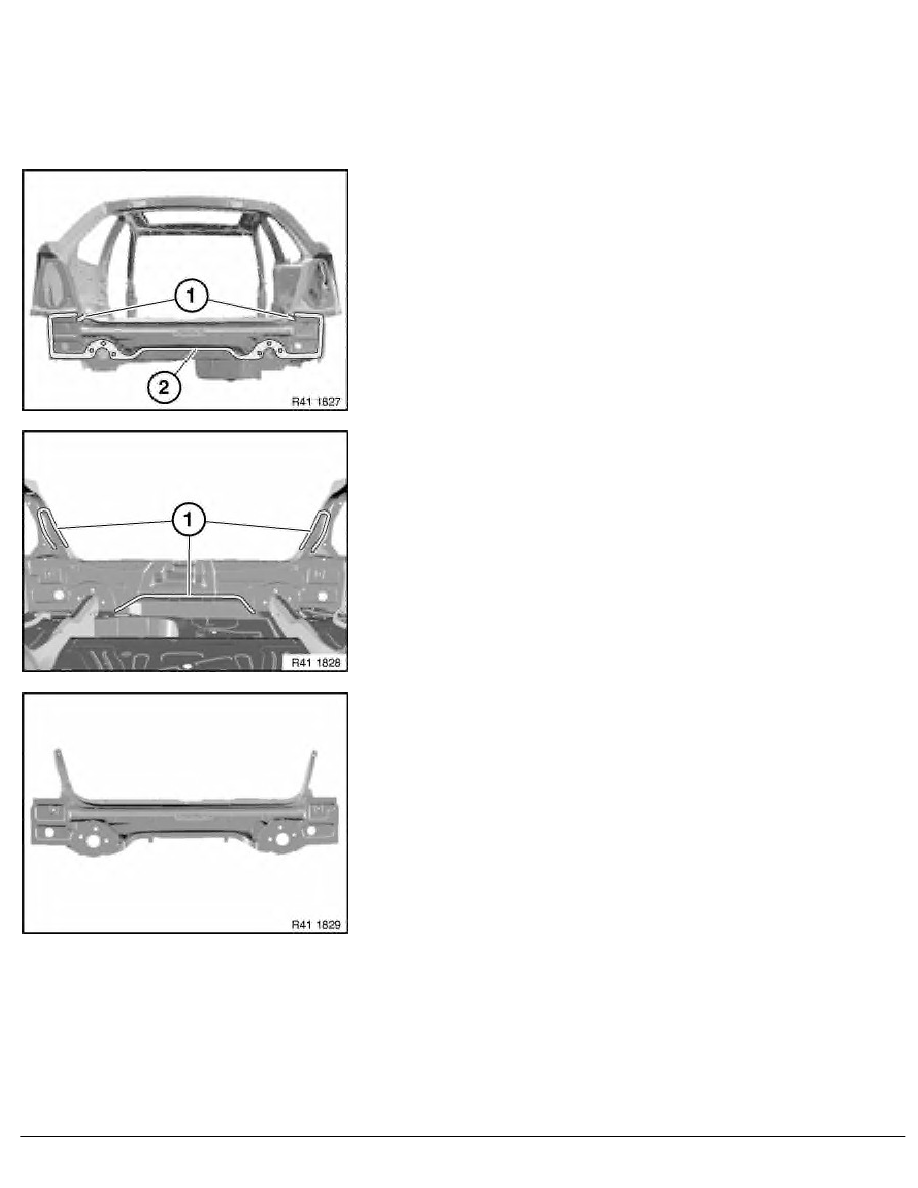

Open brazed joints in areas (1) and weld joints in area (2).
Open weld joints in areas (1).
Remove tail panel.
Clean connecting points on new part and body and coat with
welding primer.
RA Replacing tail panel
