3 Series E46 318ti (N46) COMP
51 21 370
Removing and installing/replacing cover at
bottom of left or right front door (compact)

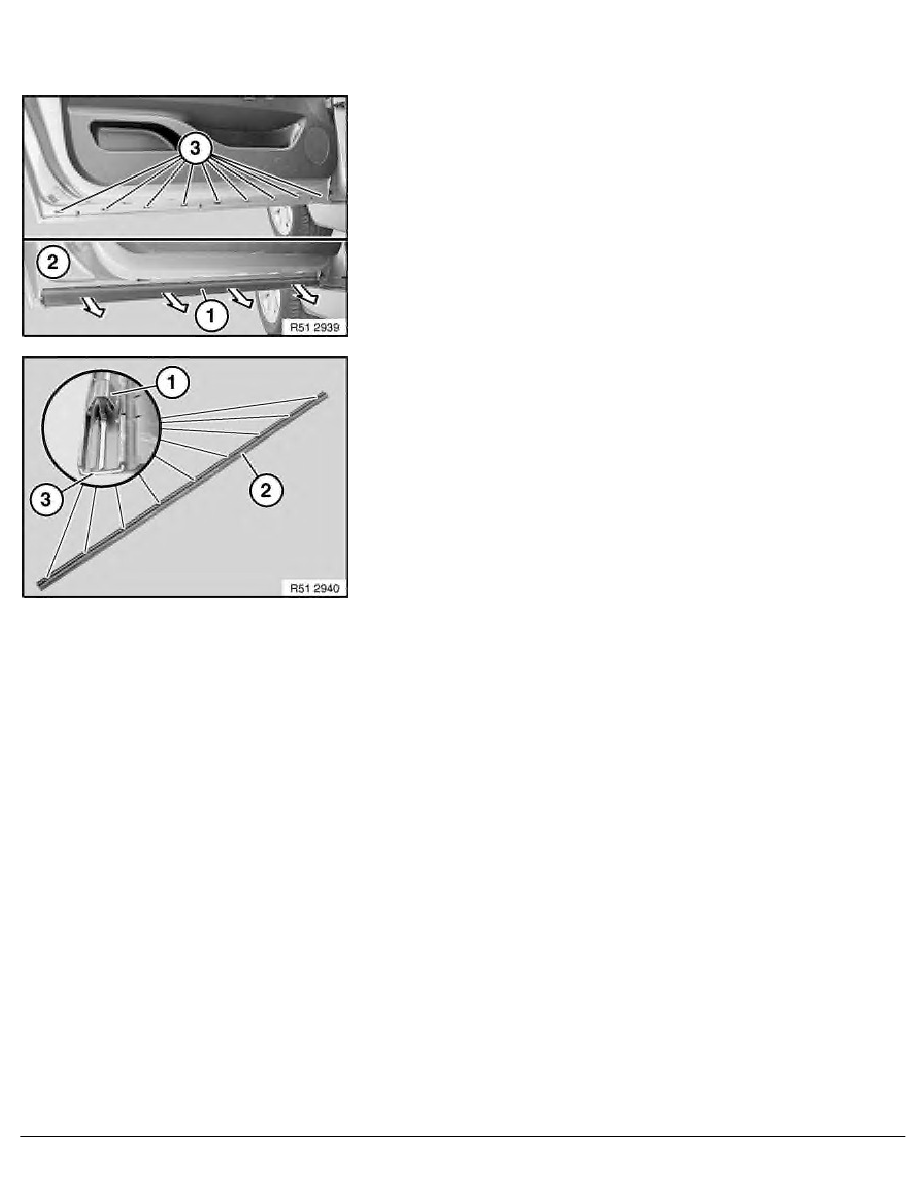

Detach cover (1) in direction of arrow from front door (2).
Installation:
Clips of cover (1) must clip correctly into bores (3).
Installation:
Clips (1) of cover (2) must not be damaged.
Cover (2) has an aluminum profile insert.
During installation, only press on the clips otherwise the cover (2)
becomes uneven.
RA Removing and installing/replacing cover at bottom of left or right front door (c
BMW AG - TIS
12.02.2013 11:55
Issue status (12/2007) Valid only until next DVD is issued
