Troubleshooting: Unlocking & Disconnecting Plug Connections (Series E46 318ti)

Page 3
background image

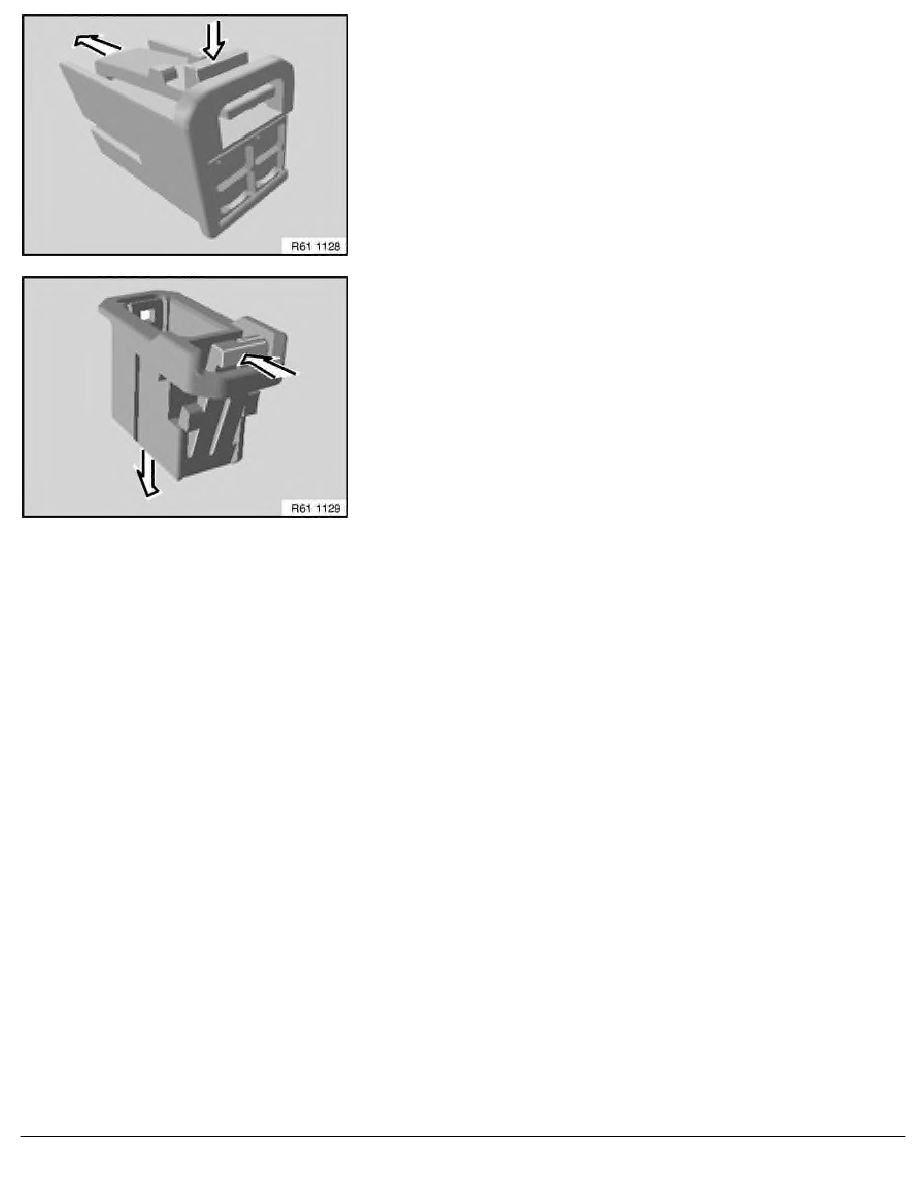

Press lock and disconnect plug connection in direction of arrow.

Press lock and disconnect plug connection in direction of arrow.

RA  Unlocking and disconnecting different plug connections

BMW AG - TIS

12.02.2013  13:55

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 3 -
