3 Series E46 320d (M47TU) SAL
13 72 001
Replacing air cleaner element (M47TU)

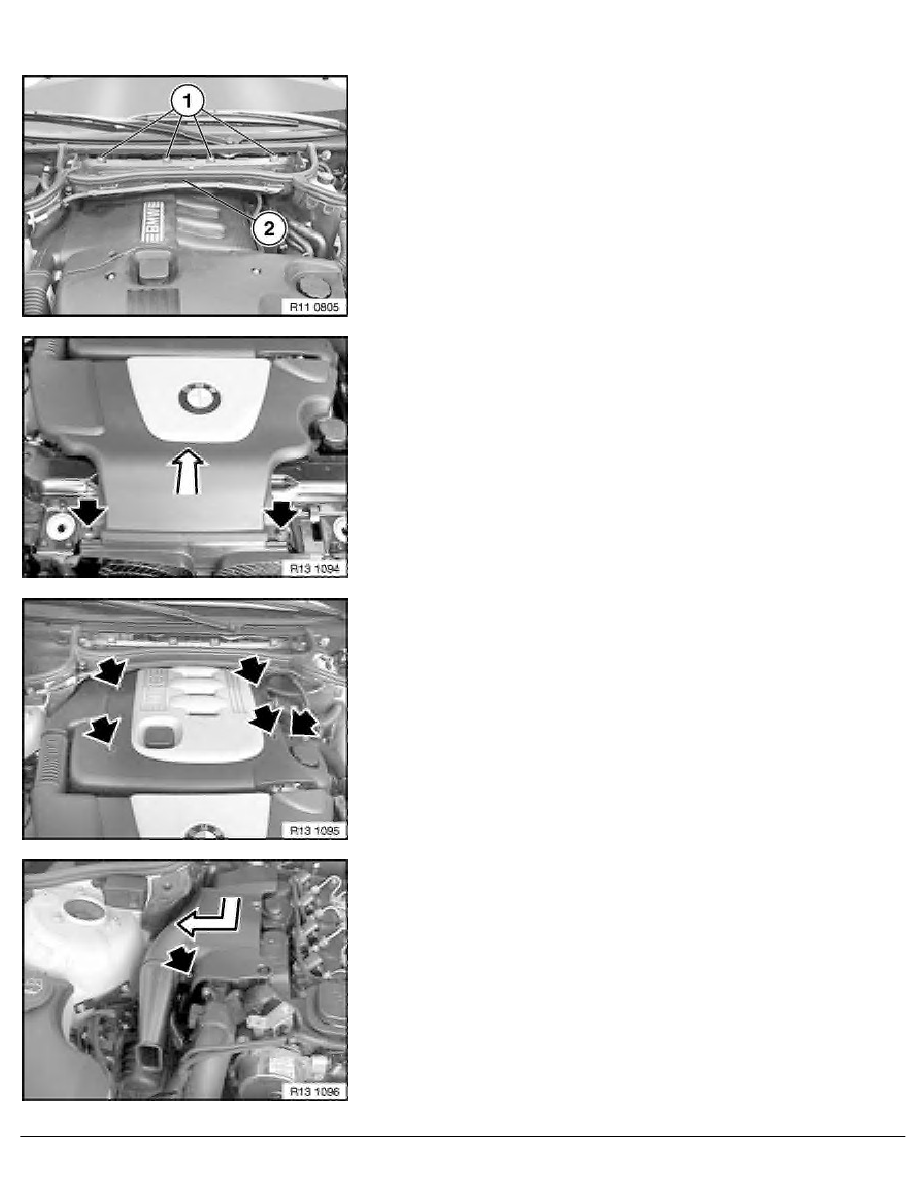

Remove microfilter.
Open cable duct on lower section of microfilter housing (2) and
feed out cable(s).
Release screws (1) and remove lower section of microfilter
housing (2).
Remove expansion rivets.
Release intake hood in direction of arrow and remove in opposite
direction together with intake snorkel.
Unfasten screws.
Lift off acoustic cover.
Unfasten screws.
Release air funnel in direction of arrow and remove.
RA Replacing air cleaner element (M47TU)
