3 Series E46 325i (M54) SAL

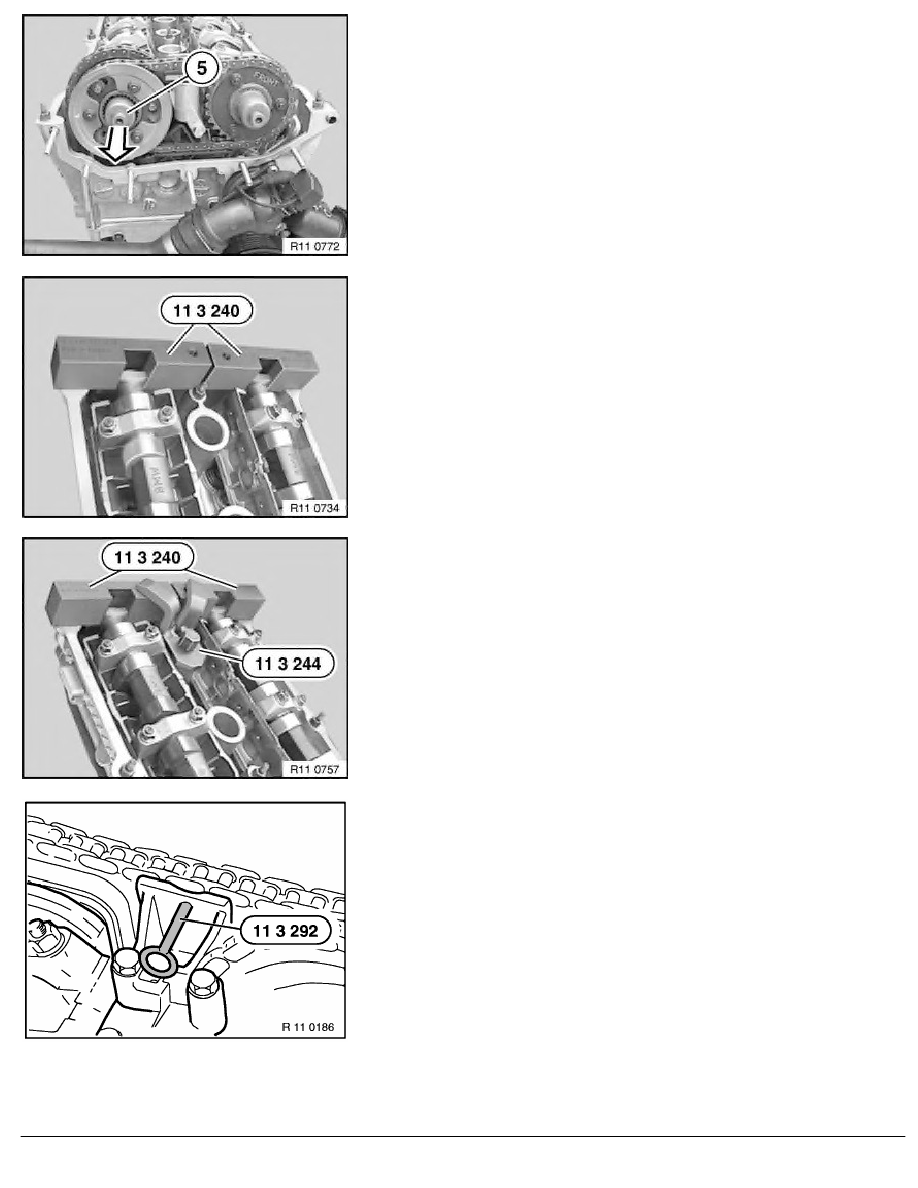

Withdraw toothed shaft (5) up to stop.
Fit special tool 11 3 240 to camshafts on cylinder 6. Align
camshafts so that special tool 11 3 240 rests without gaps on
cylinder head.
Attach special tool 11 3 244 to special tool 11 3 240 and
locate by way of spark plug thread.
Press down chain tensioner at top and remove special tool
11 3 292 .
RA Adjusting camshaft timing (M52TU / M54 / M56)
BMW AG - TIS
13.02.2013 23:05
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 4 -
