3 Series E46 325i (M54) SAL
16 12 010
Removing and installing / replacing activated-
carbon filter

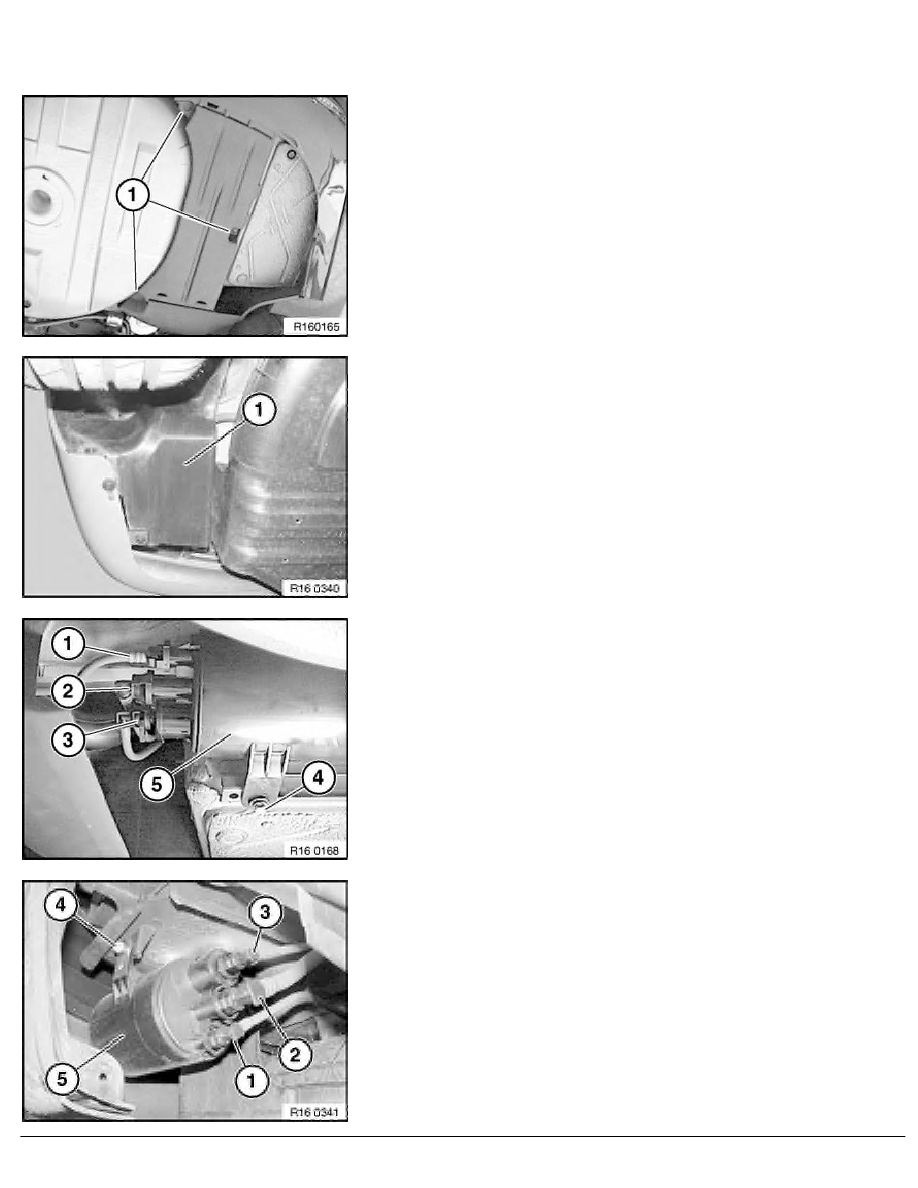

Release screws and expansion rivet (1), remove panel (2).
For model 46/5 only:
Remove rear right wheel arch trim.
Release fastener for lines (1 to 3), detach lines.
Release hexagon screw (4), remove carbon canister (5).
For model 46/5 only:
Release fastener for lines (1 to 3), detach lines.
Release hexagon screw (4), remove carbon canister (5).
RA Removing and installing / replacing activated-carbon filter
