3 Series E46 325i (M54) SAL
51 15 360
Removing and installing rubbing strip on rear
door on left or right

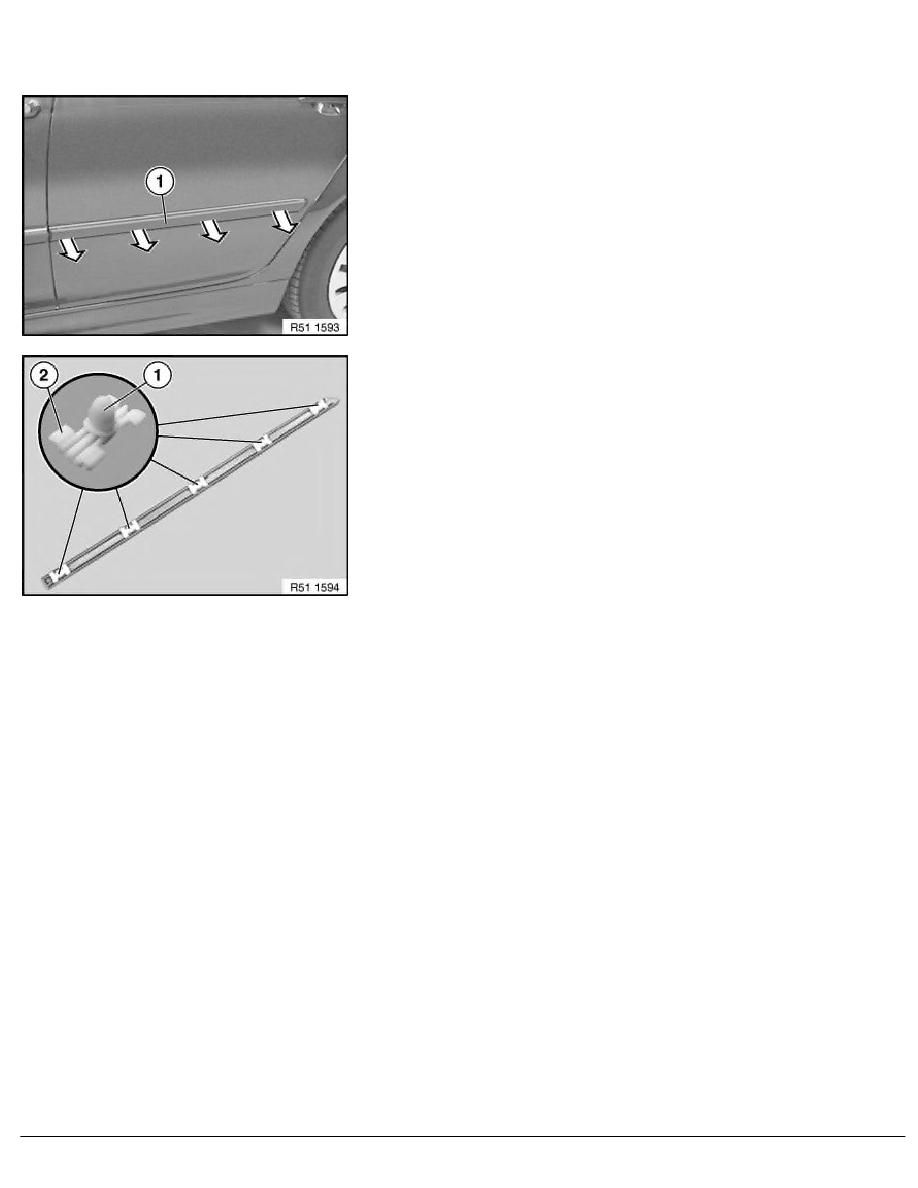

Unclip rubbing strip (1).
If necessary, remove clips from rear door.
Installation:
If necessary, replace faulty rubber grommets (1) and clips (2).
Attach clips to body molding in rubber grommet and align.
Prior to installation, coat rubber grommet (1) with soapy
solution (washing-up liquid).
Clip rubbing strip into rear door.
RA Removing and installing rubbing strip on rear door on left or right
