3 Series E46 330Ci (M54) CONVER

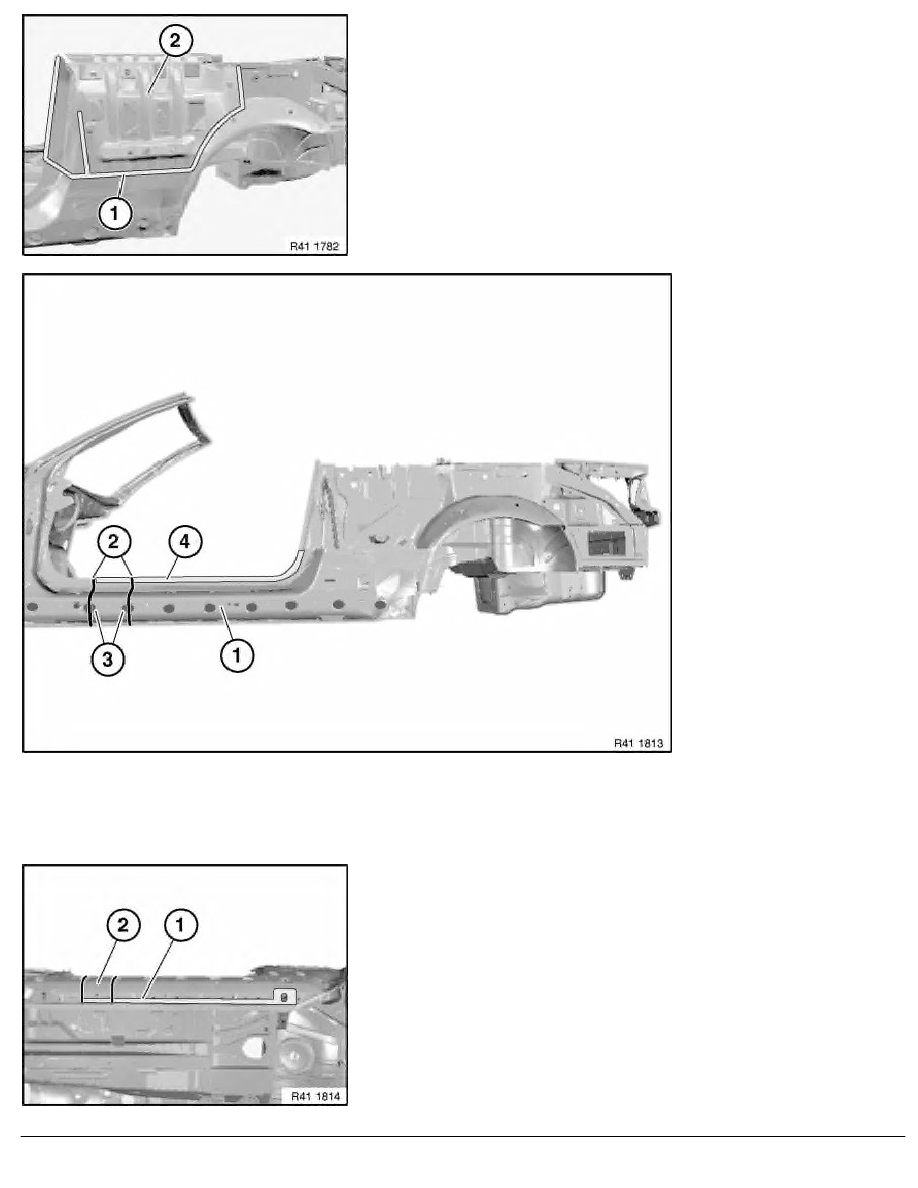

Open weld spots in area (1).
Remove inner B-pillar reinforcement (2).
On outer entrance (1), mark cutting lines (2) in center of bores (3) and cut.
Diameter of bores (3) 35 mm.
Open weld spots in area (4).
Open weld spots in area (1).
Remove outer entrance section (2).
Installation:
If undamaged, outer entrance section (2) is reused.
RA Replacing rear left side wall with inner side frame
BMW AG - TIS
15.02.2013 10:55
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
