3 Series E46 330xd (M57) SAL
Installation:

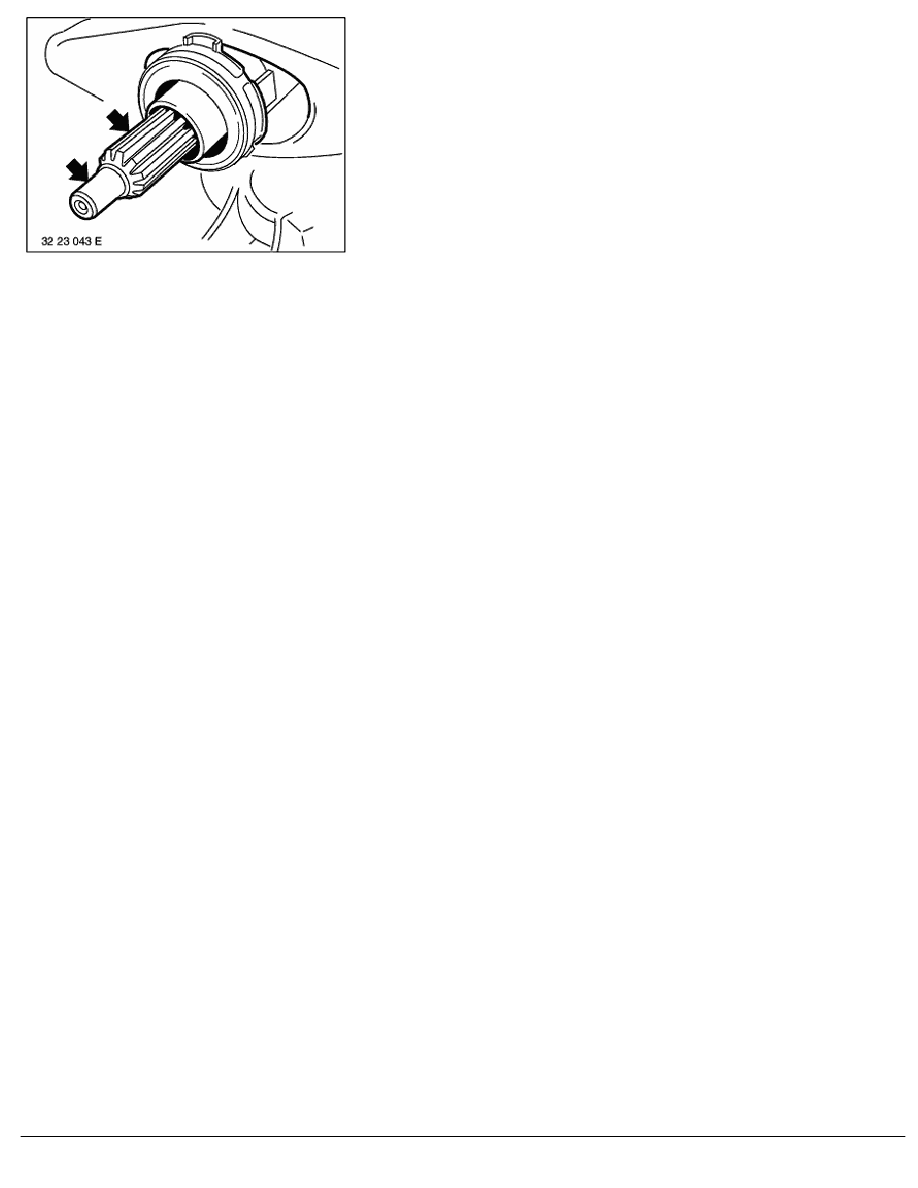

Check lubrication of transmission input shaft for sticky
consistency. If grease is sticky, replace clutch plate.
Check clutch plate for friction rust in taper splines and replace
if necessary.
Mechanically remove old grease and lining abrasion from
taper splines of clutch plate (with a cloth).
Then use a brush to apply a thin even coating of grease for
lubricating taper splines over the entire area. Also in taper
groove and on guide pin.
RA Removing and installing transmission (GS5-39DZ, 4WD)
