3 Series E46 M3 CSL (S54) COUPE

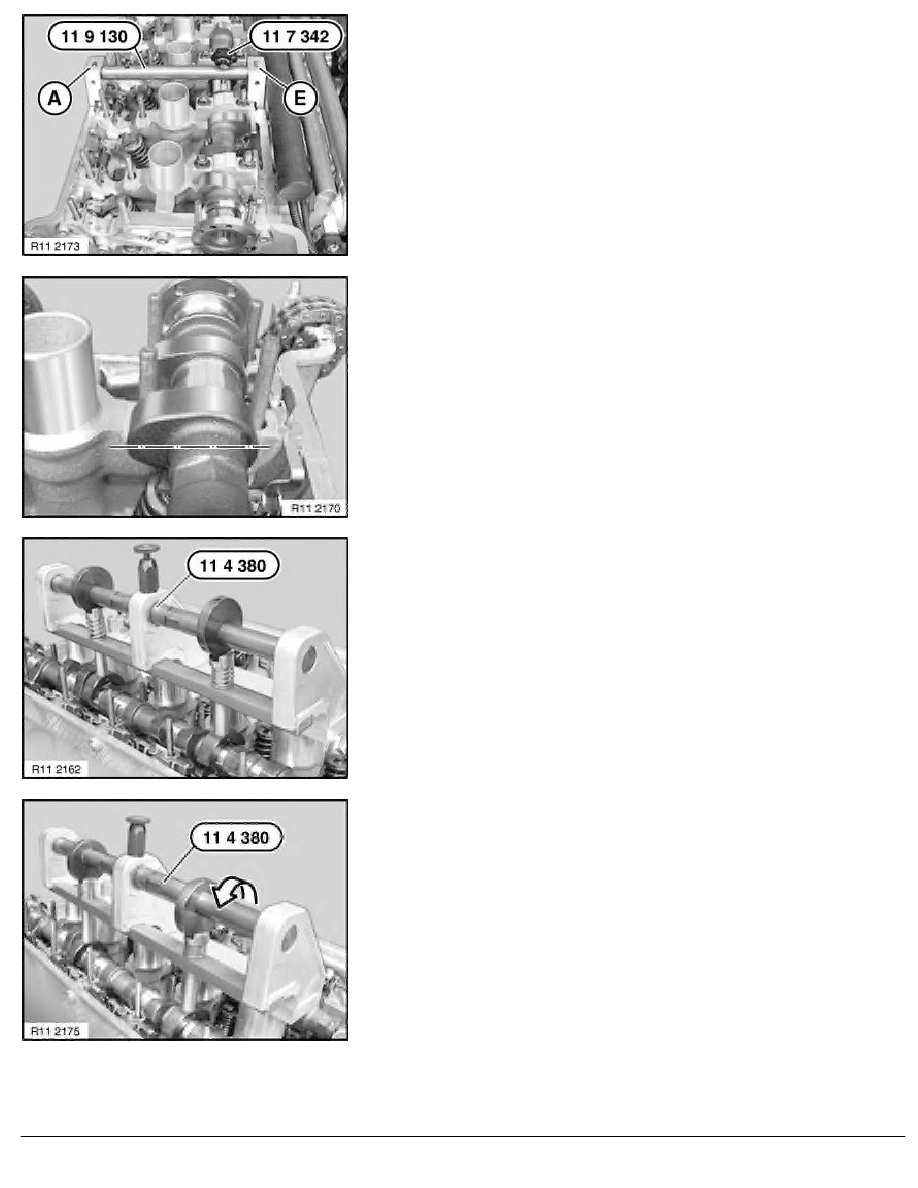

Inlet side:
Attach special tool 11 9 130 to cylinder head.
Align inlet camshaft at hexagon until special tool 11 7 342 can
be joined by means of special tool 11 9 130 in locating bore.
special tool 11 9 130 must rest flat on cylinder head.
Remove special tool 11 9 130 and special tool 11 7 342 .
Installing exhaust camshaft:
Clean dirty parts.
Oil following parts before installation:
•
Contact faces of camshafts in cylinder head
•
Rocker arm
•
Cams and contact faces of camshafts
•
Bearing cover
Install exhaust camshaft in such a way that cams on cylinder 1
point horizontally inwards.
Exhaust side:
Important!
Incorrect removal/installation without a special tool exposes
the camshaft to the risk of preliminary damage or breakage.
Fit special tool 11 4 380 on exhaust camshaft and screw into
spark plug threads of cylinders 2 and 5.
Exhaust side:
Pretension exhaust camshaft by rotating eccentric shaft.
RA Replacing camshafts (S54)
