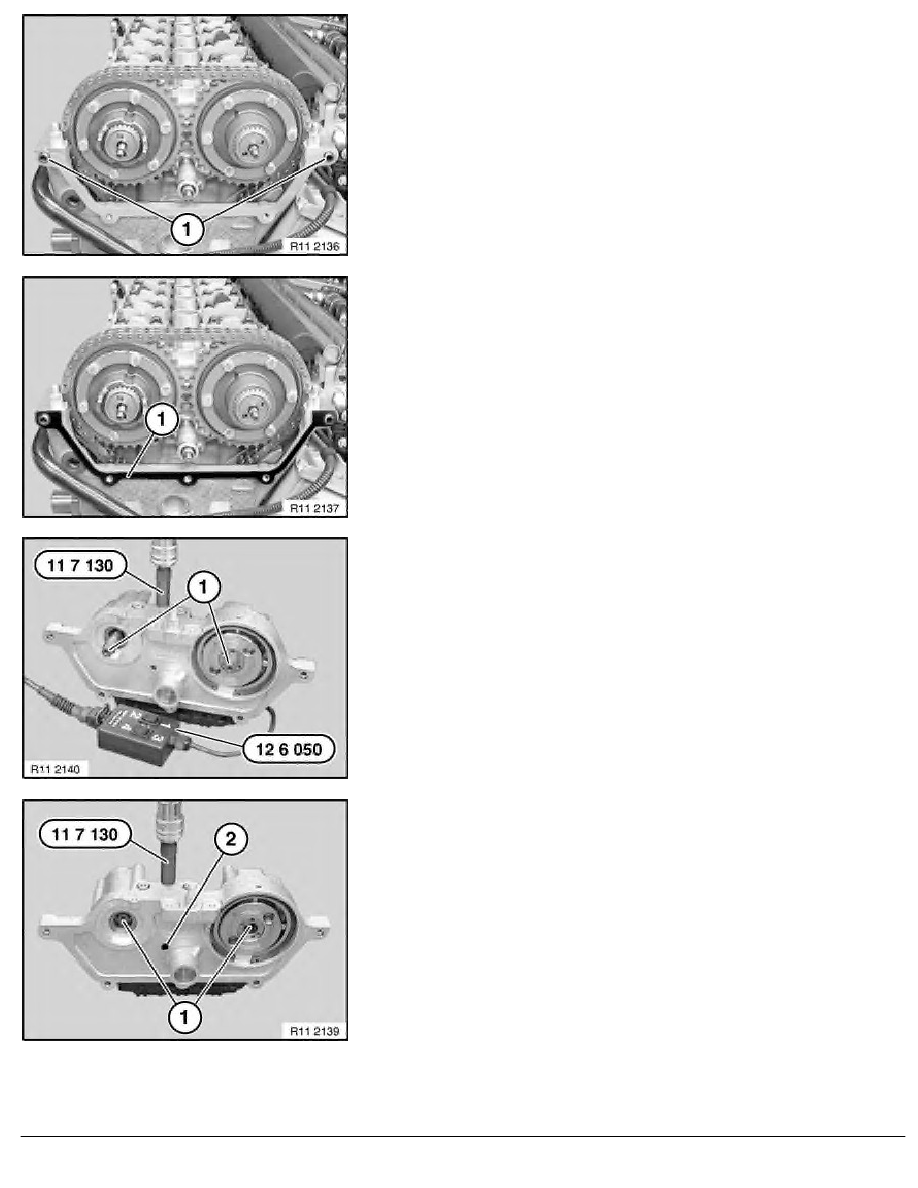

Check dowel sleeves (1) for damage and correct installation
position.
Replace seal (1).
Important!
Note direction of installation of gasket.
Install gasket (1) in such a way that beading points to
VANOS adjustment unit.
Secure gasket (1) with sealing compound on adapter
sleeves.
E85 only:
Installation:
For installation of VANOS adjustment unit in installed engine.
Attach special tool 11 7 130 and connect a compressed air
supply of 2 to 8 bar.
Briefly actuate buttons 1 and 3 on special tool 11 6 050 .
Both axial pistons (1) on VANOS adjustment unit must be
retracted (retarded setting).
Setting of axial pistons (1) on VANOS adjustment unit.
