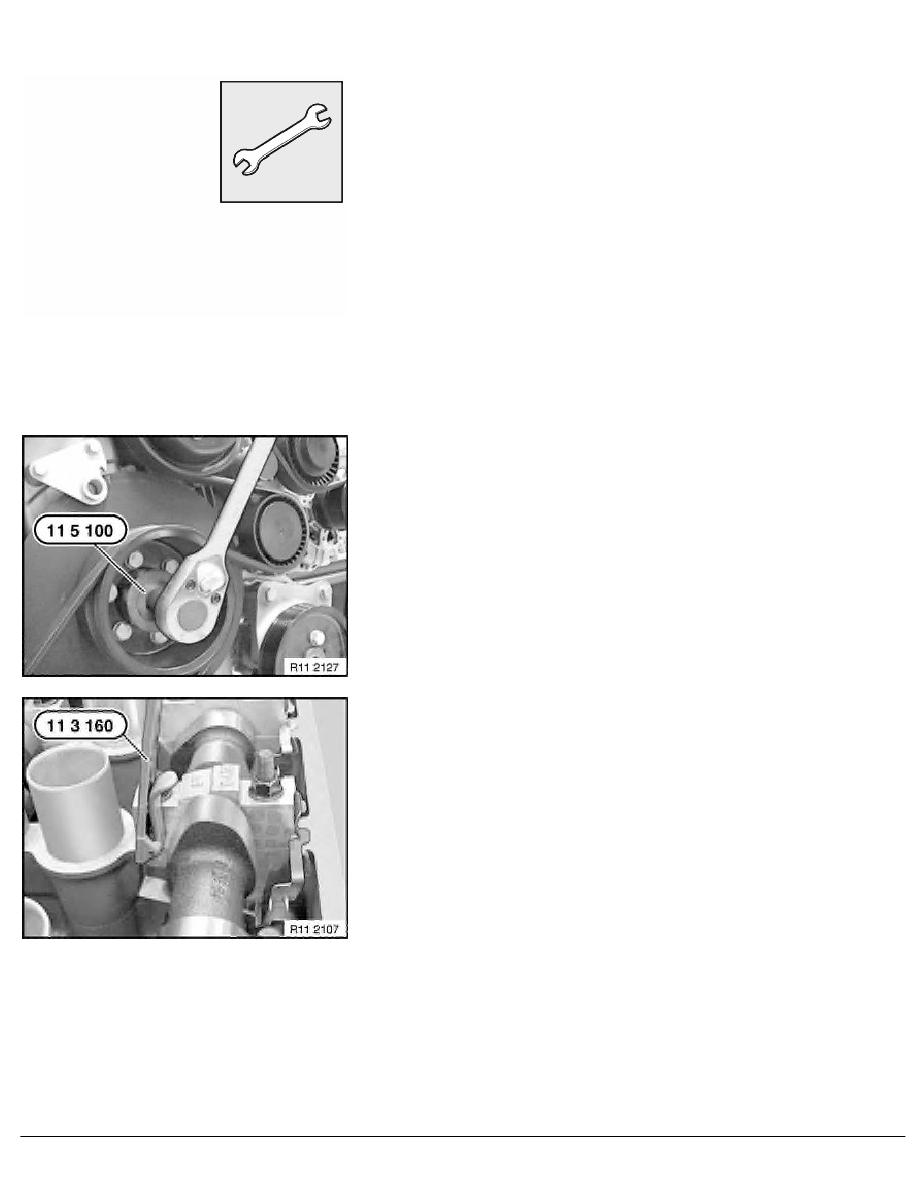

3 Series E46 M3 CSL (S54) COUPE
Measure removed adjustment plates.
Caution!
It is very easy for the adjustment plates to fall down.

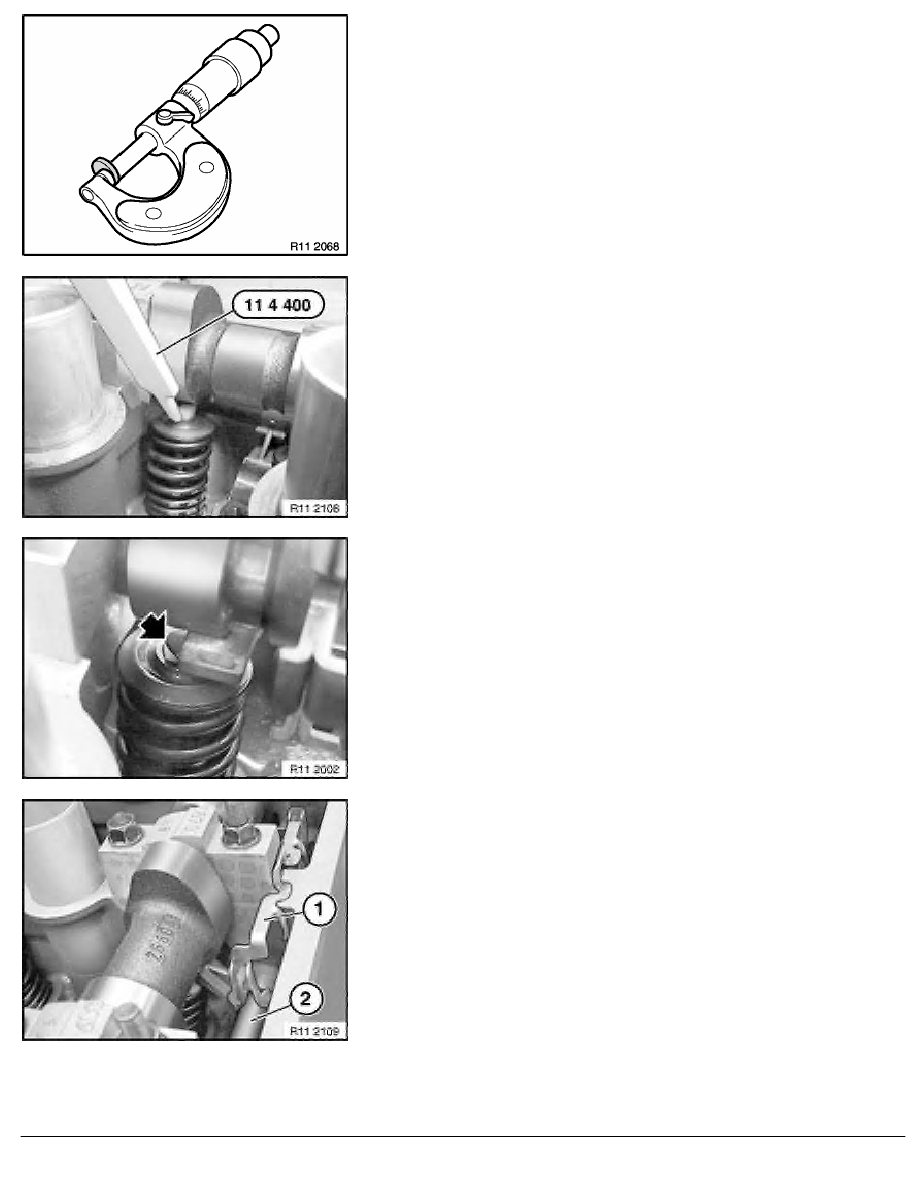

Insert required adjustment plates with special tool 11 4 400 .
Caution!
Incorrect installation possible!
When the rocker arm is pushed back, there is the risk that the
adjustment plate will also be pushed out.
Carefully push rocker arm back and check correct position of
adjustment plates.
Note:
If necessary, check correct position of adjustment plates with a
mirror.
Caution!
Do not damage sealing surface for cylinder head cover.
Install retaining clip (1).
Caution!
Retaining clip (1) must snap into place on left and right over
rocker arm shaft (2).
Check valve clearance.
RA Adjusting valve clearance (S54)
