3 Series E46 M3 CSL (S54) COUPE
·
from control unit
·
from DME relay
·
Remove electronics box
cover.
·
Do not remove control
unit.

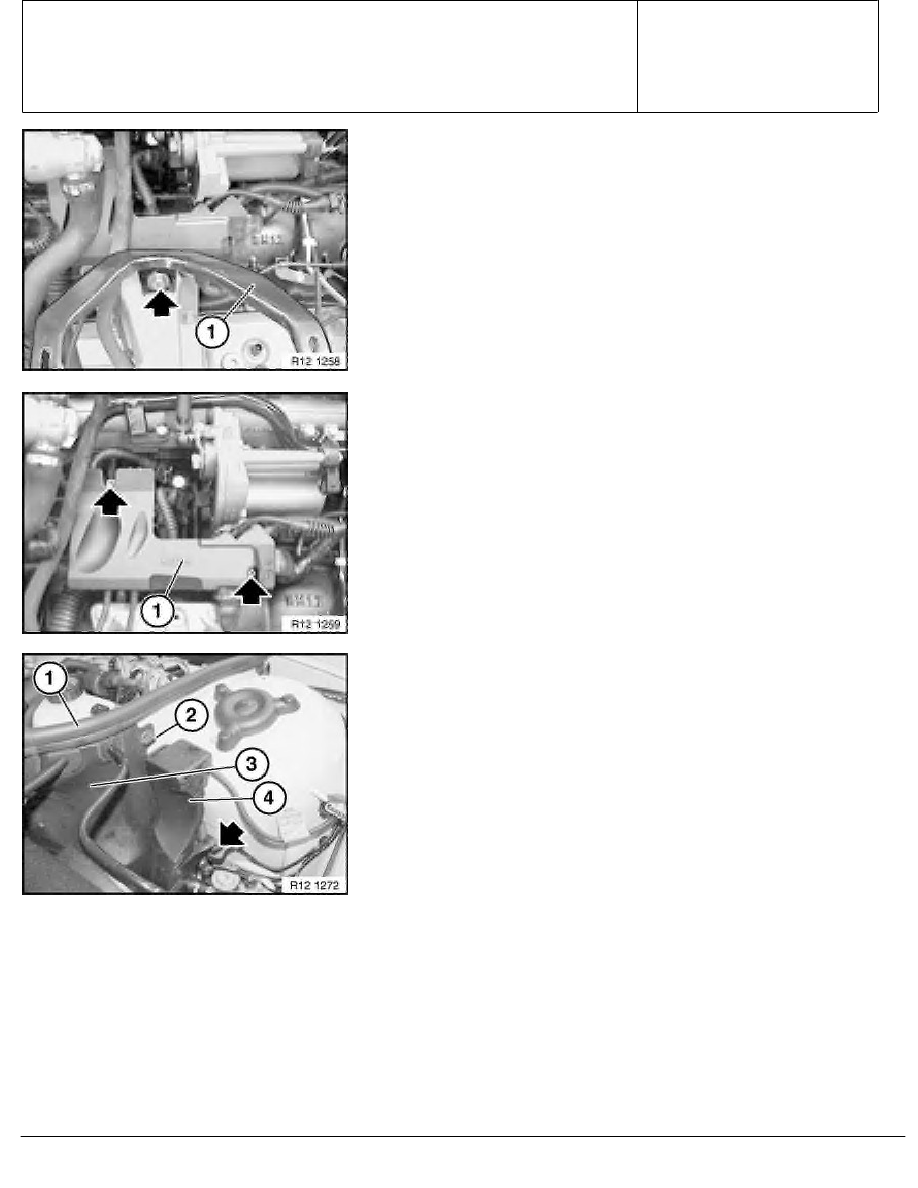

Release screw and remove manifold support (1).
Installation:
To avoid manifold torsion stress, secure manifold support with
screw but do not tighten down screw. Only tighten down screw
when manifold is mounted on throttle assembly.
Release screws and remove cable duct (1).
Detach sealing strip (1).
Turn toggle (2) through 90
°
.
Remove partition wall for equipment compartment (3).
Release nut.
Remove cable housing (4).
Installation:
Ensure profile seals are correctly positioned.
RA Replacing wiring harness section for engine (S54)
