3 Series E46 M3 CSL (S54) COUPE

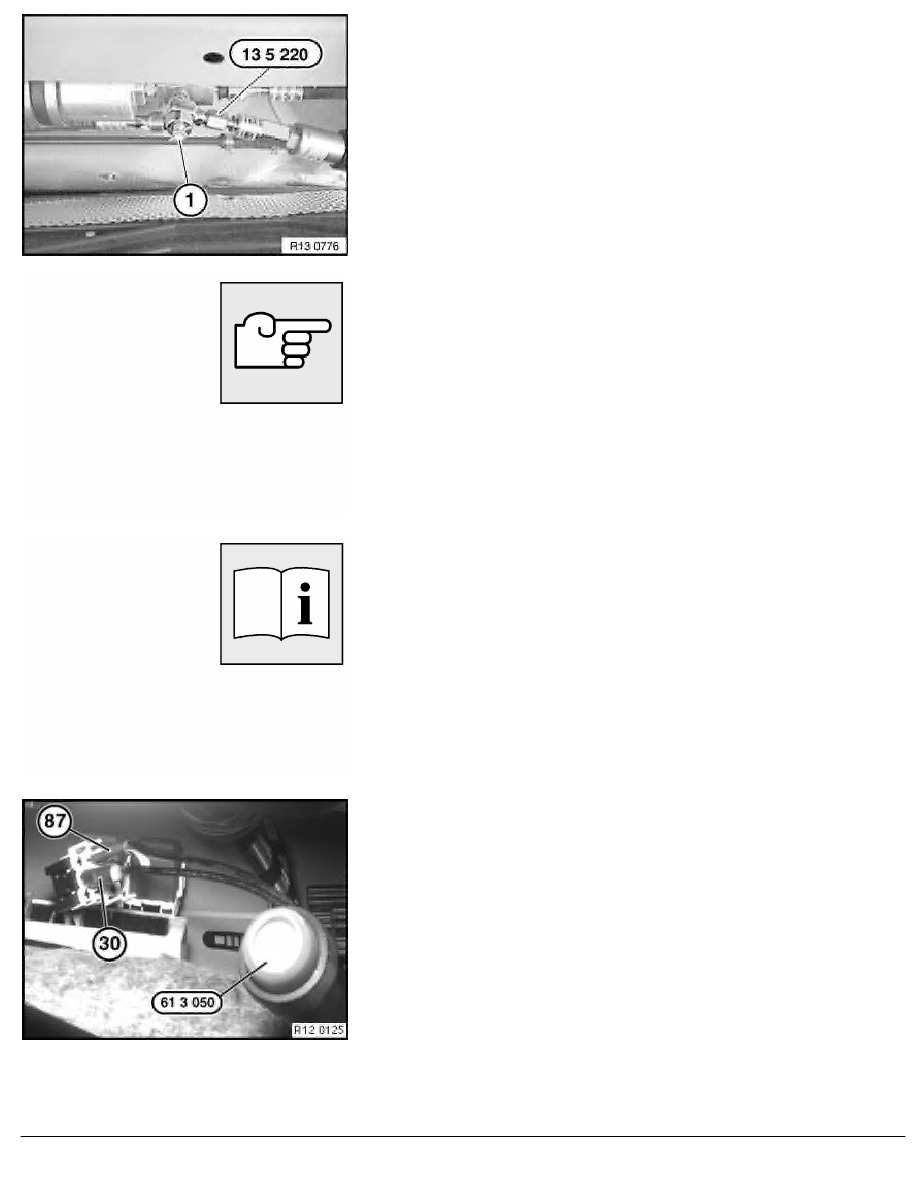

Attach special tool kit 13 5 220 to housing of pressure regulator
and tighten knurled nut until hand-tight.
Screw out check valve (1) so that valve in pressure regulator
housing is closed.
Start engine.
Screw in check valve (1) until a pressure reading is indicated on
DIS Tester.
Measuring fuel pressure.
-
Select Measurement.
-
Multimeter function appears
-
Select Pressure test
-
Read off value of fuel pressure.
Compare actual value of test pressure with specified value.
Switch off engine.
Checking fuel pump:
Remove fuel pump relay.
Connect special tool 61 3 050 to terminals 87 and 30.
Press button and read off fuel pump delivery pressure on DIS
Tester.
Compare actual value with setpoint value of delivery pressure.
RA Checking fuel pump delivery pressure (S54)
