3 Series E46 M3 CSL (S54) COUPE

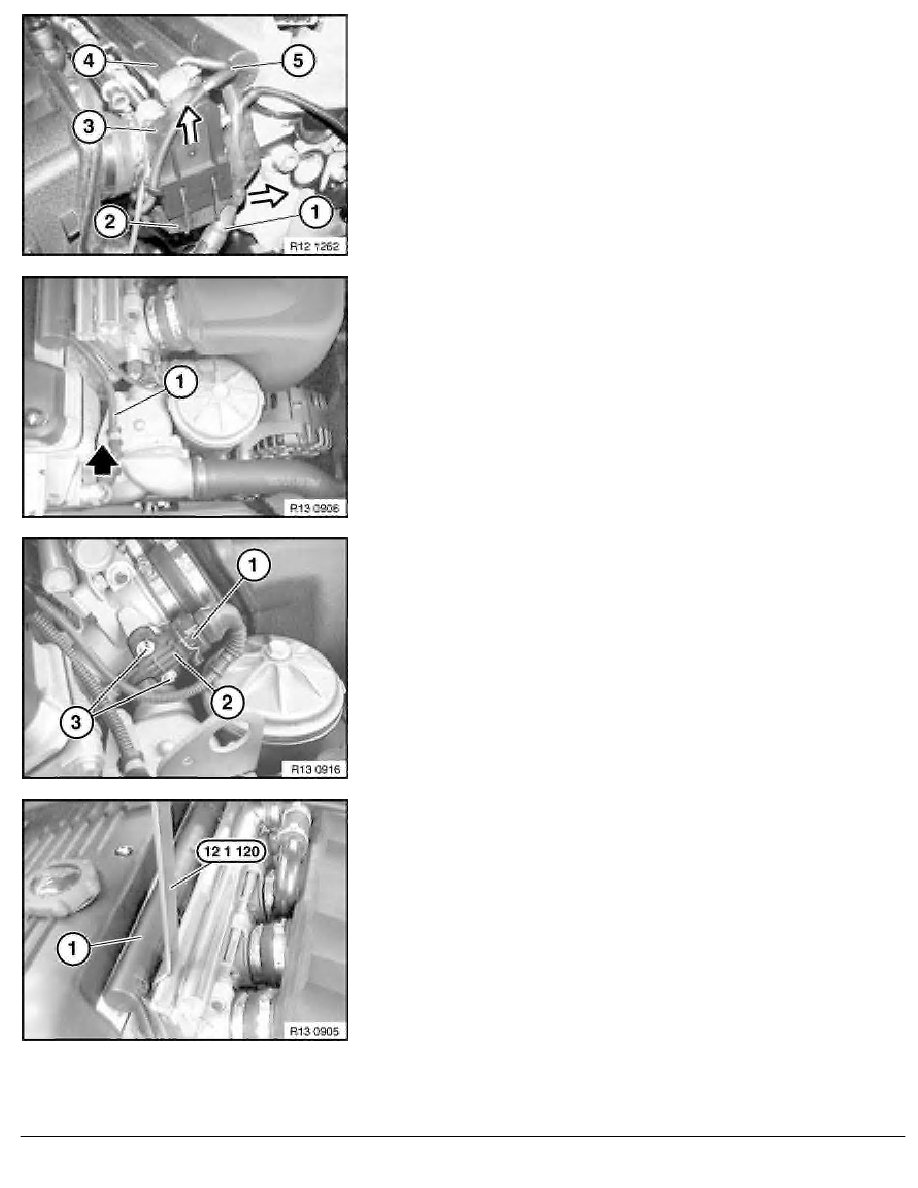

Detach wiring harness (1) for fuel injector rail from holder (2).
Detach hose (5) from air pipe (4).
Detach protective cap (3) from holder (2) towards top.
Note:
For a better overview, this work step is shown on an engine that
has been removed.
Release nut and remove cable (1) from holder.
Unlock plug (1) and detach from throttle potentiometer (2).
Important!
Connector strip (1) can break if it is removed without special
tool 12 1 120 .
