3 Series E46 M3 CSL (S54) COUPE

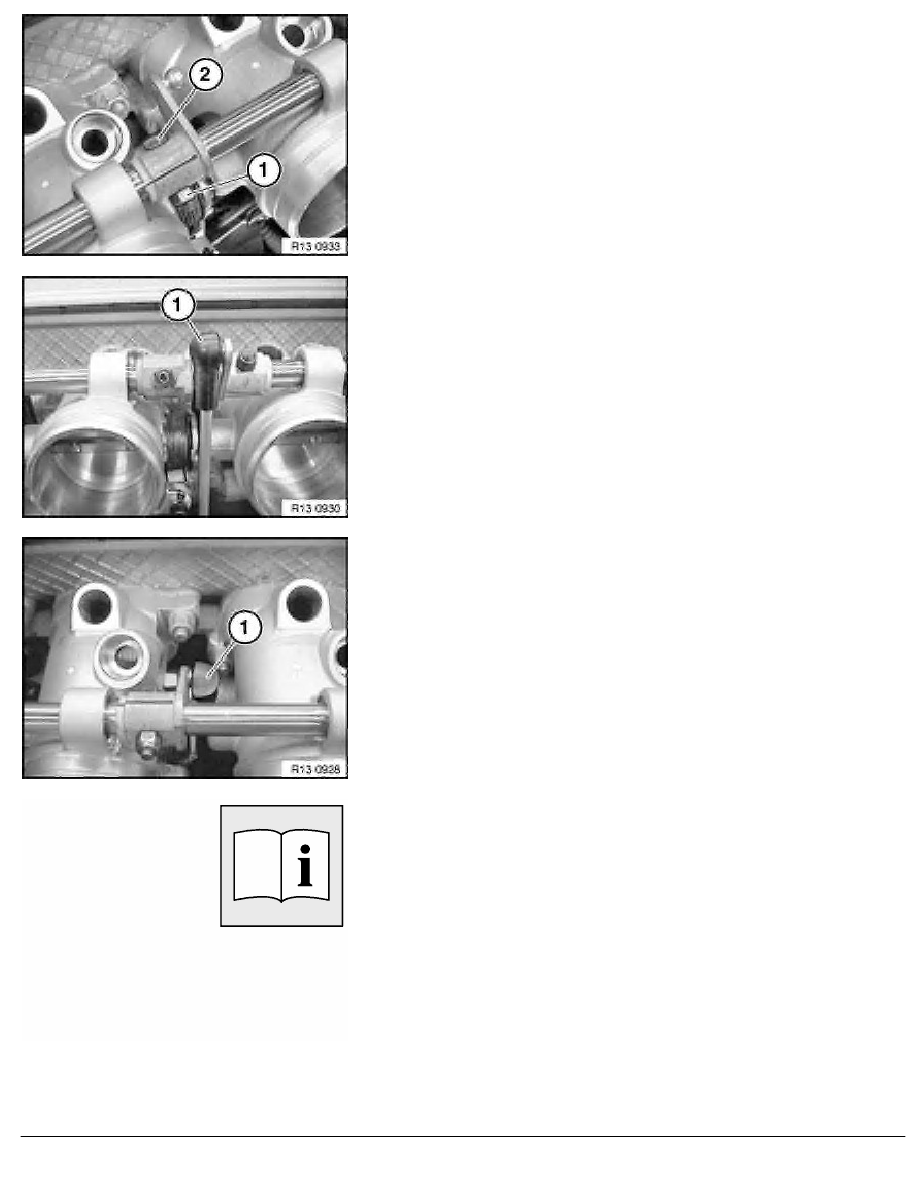

Insert screw (2) in all other actuating levers and fit nut (1).
Note:
Do not tighten down nuts (1).
Clip in pull rod (1) for throttle valve actuator on throttle valve side
(long pull rod).
Clip in pull rods (1) on all throttle valve assemblies.
Carry out basic throttle valve adjustment.
Assemble engine.
RA Removing and installing/sealing a throttle valve assembly (S54)
