3 Series E46 M3 CSL (S54) COUPE
11 61 ...
Removing and installing raw air housing (S54,
M3 CSL)

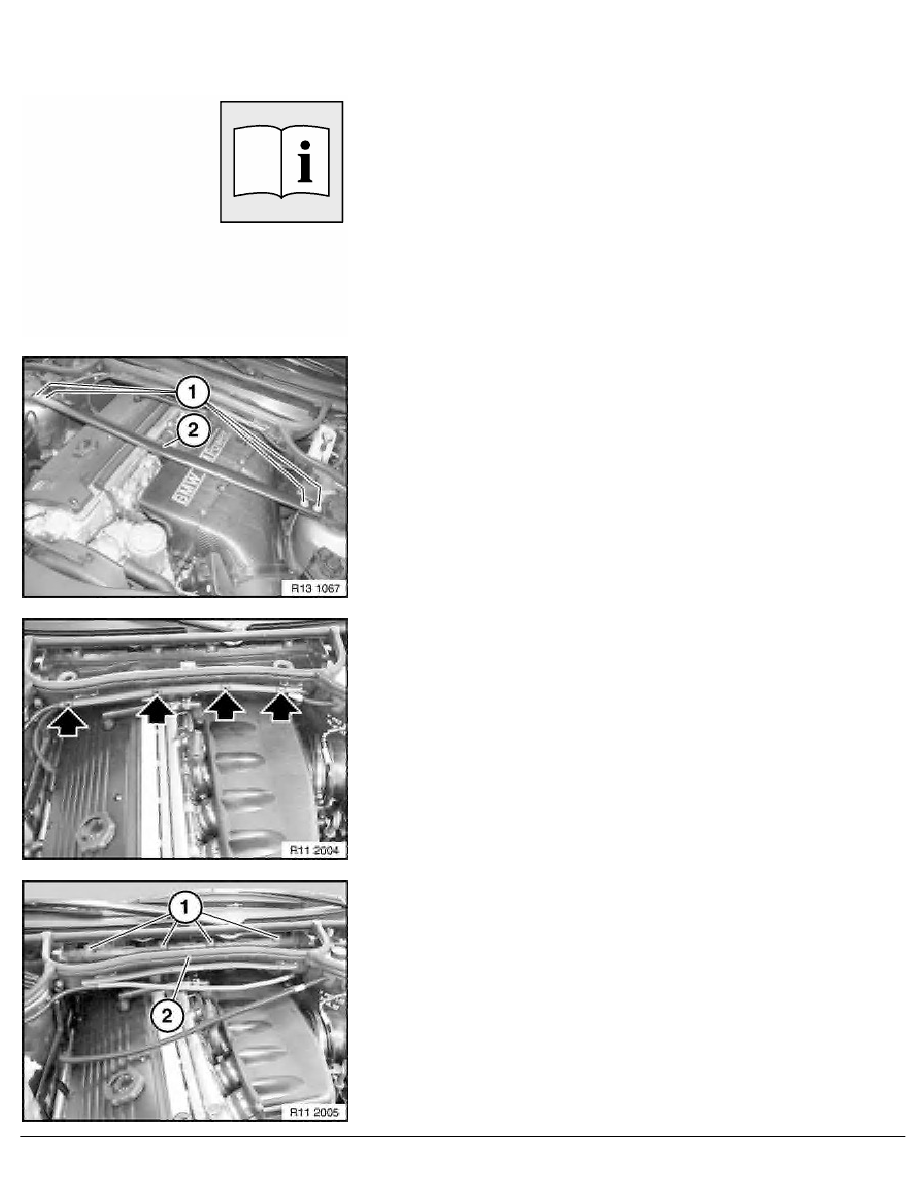

Necessary preliminary tasks:
•
Remove microfilter
Release screws (1).
Remove cross strut (2).
Open cable duct on lower section of microfilter housing and feed
out cable(s).
Release screws (1).
Remove lower section of microfilter housing (2).
RA Removing and installing raw air housing (S54, M3 CSL)
BMW AG - TIS
16.02.2013 16:48
Issue status (12/2007) Valid only until next DVD is issued
