3 Series E46 M3 CSL (S54) COUPE
21 53 501
Checking/topping up fluid level in hydraulic
system (S6S 420G SMG)
Turn on ignition.
Press brake pedal.
Move selector lever from position "0" to "R" or "0" to "E" until
hydraulic pump is activated.
Wait until hydraulic pump shuts down.

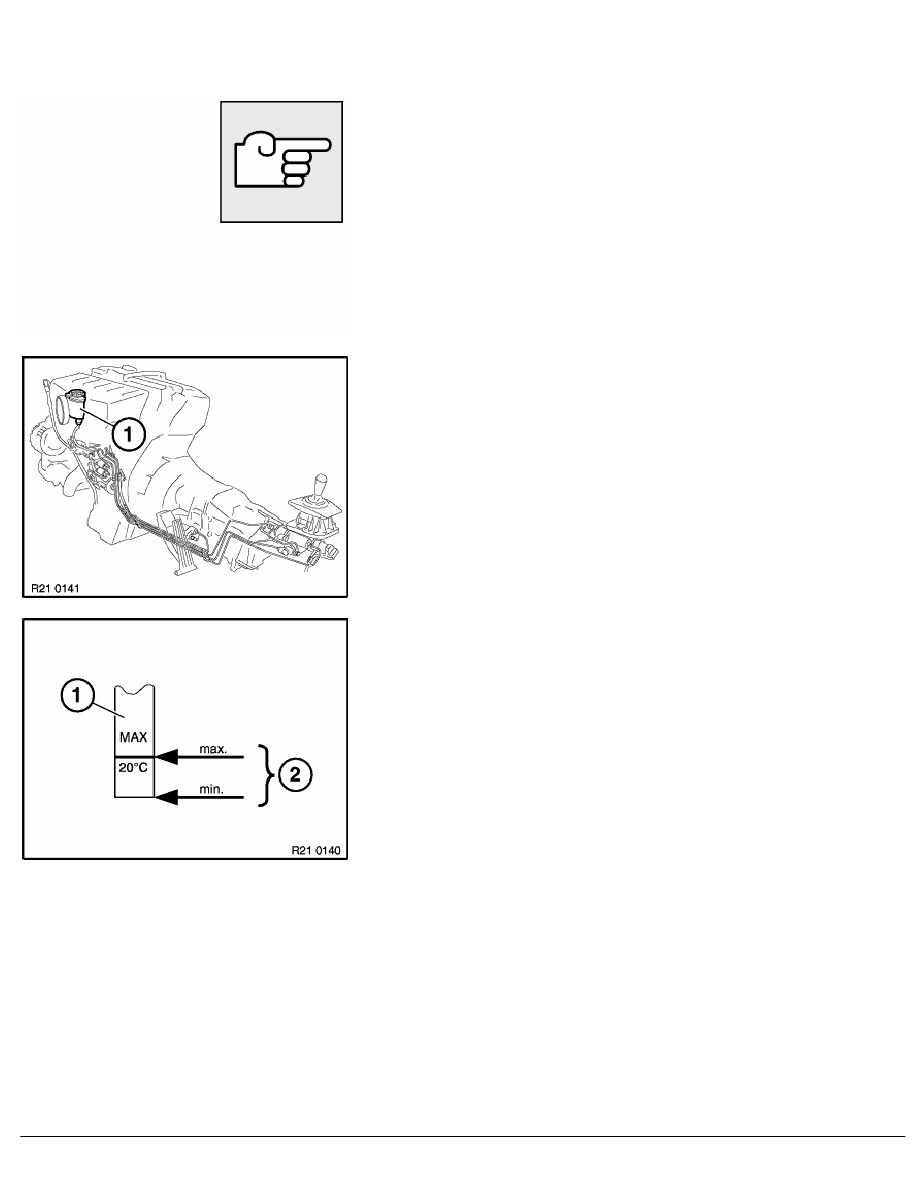

Open expansion tank (1).
Fill expansion tank up to MAX marking (2) on dipstick (1).
Hydraulic fluid for clutch hydraulics.
Note:
Check with dipstick on cap; for this, screw in cap.
RA Checking/topping up fluid level in hydraulic system (S6S 420G SMG)
