12 RA Removing And Installing Transmission (S6S 420G SMG)|Page 1075 > < 12 RA Removing And Installing Transmission (S6S 420G SMG)
Page 2
background image

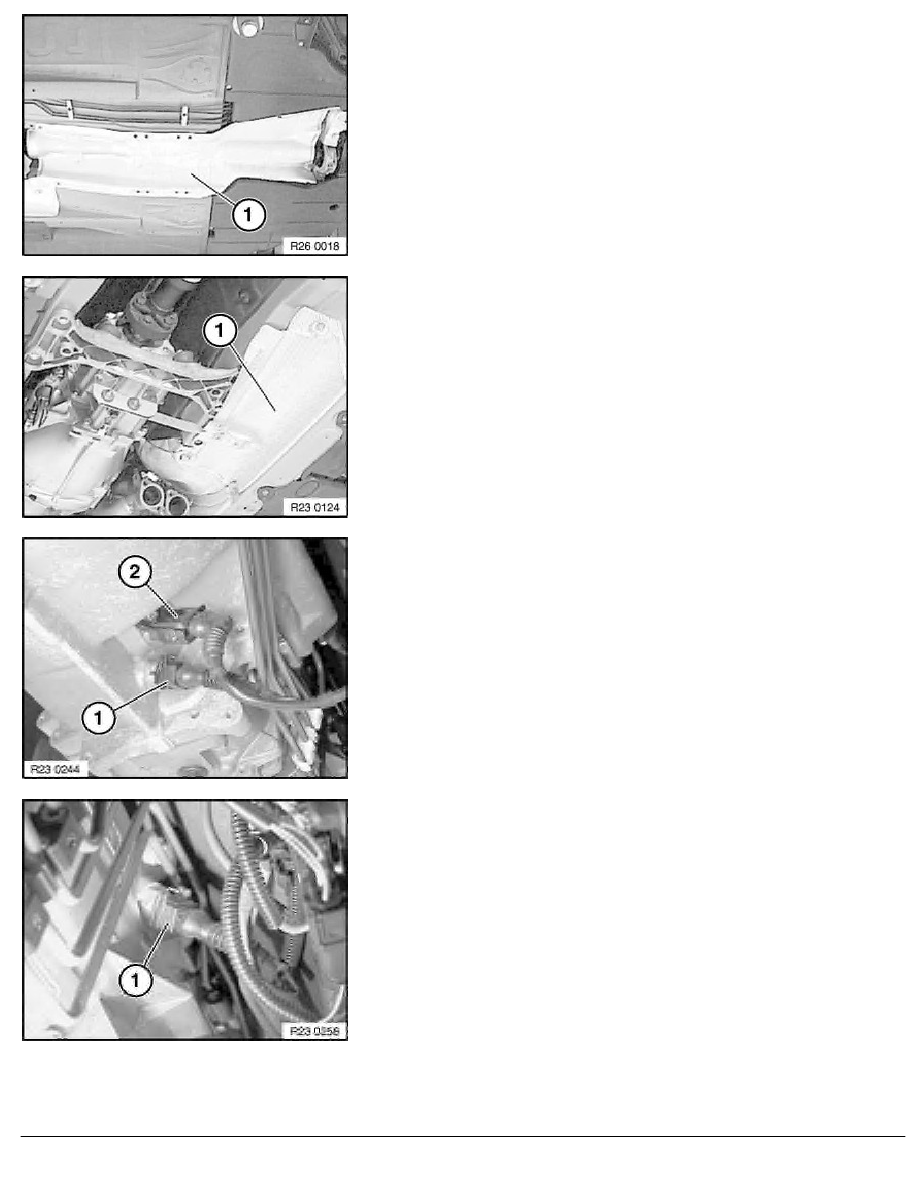

Remove heat shield (1).

Remove heat shield (1).

Remove holder for engine underbody protection at rear.

Disconnect plug for transmission oil temperature sensor (1) and
transmission speed sensor (2).

Disconnect plug for reversing light switch (1).

RA  Removing and installing transmission (S6S 420G SMG)
