3 Series E46 M3 CSL (S54) COUPE

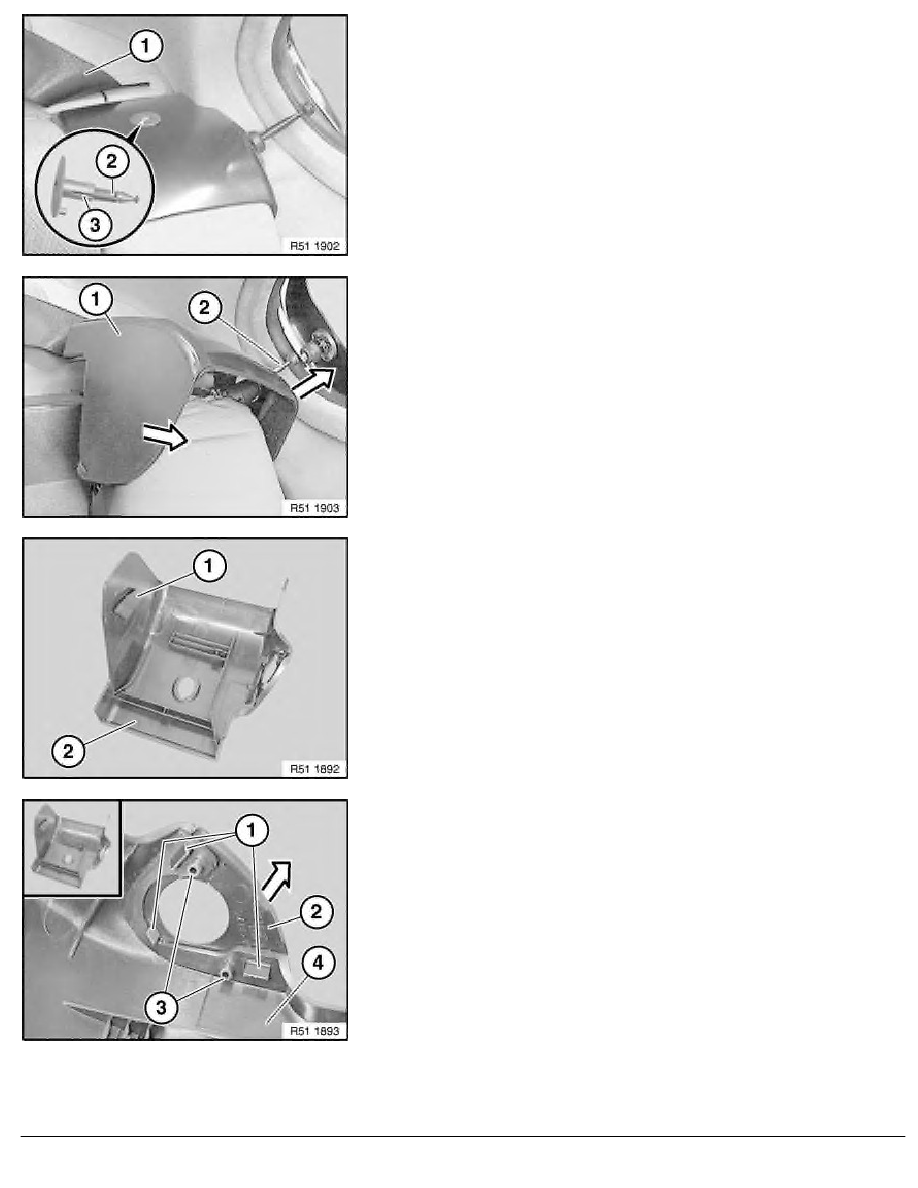

Slide seatbelt strap (1) to one side.
Press split pin (2) down and pull out expansion rivet (3) towards
top.
Lift out trim (1) towards front and
feed outwards from connecting link (2).
Installation:
Guide (1) on trim (2) must not be damaged.
Installation:
To improve installation, remove cover (2).
Unlock catches (1) and detach cover (2) from trim (4).
Do not damage guides (3).
RA Removing and installing/replacing trim on rear seat backrest side section (Coupé
