3 Series E46 M3 CSL (S54) COUPE

Page 1
background image

52 13 390

Removing and installing / replacing front
headrest (normal/ manual)

Move backrest back.

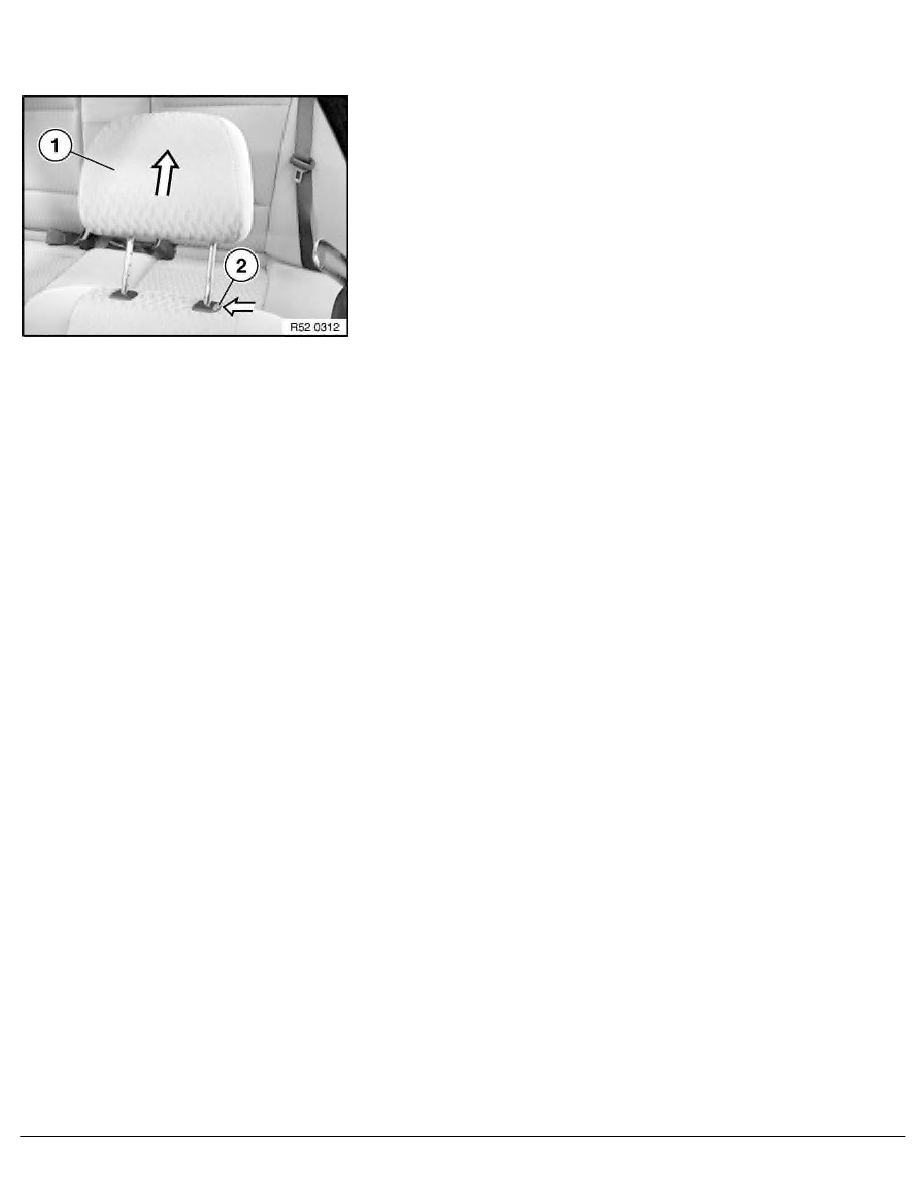

Move headrest (1) as far upwards as possible.

Unlock lock (2) and remove headrest (1).

RA  Removing and installing / replacing front headrest (normal/ manual)

BMW AG - TIS

17.02.2013  00:20

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
