Removing and Installing Servodrive For Tank Filler Flap - BMW 3 Series E46 M3 CSL

Page 3
background image

Replacement:

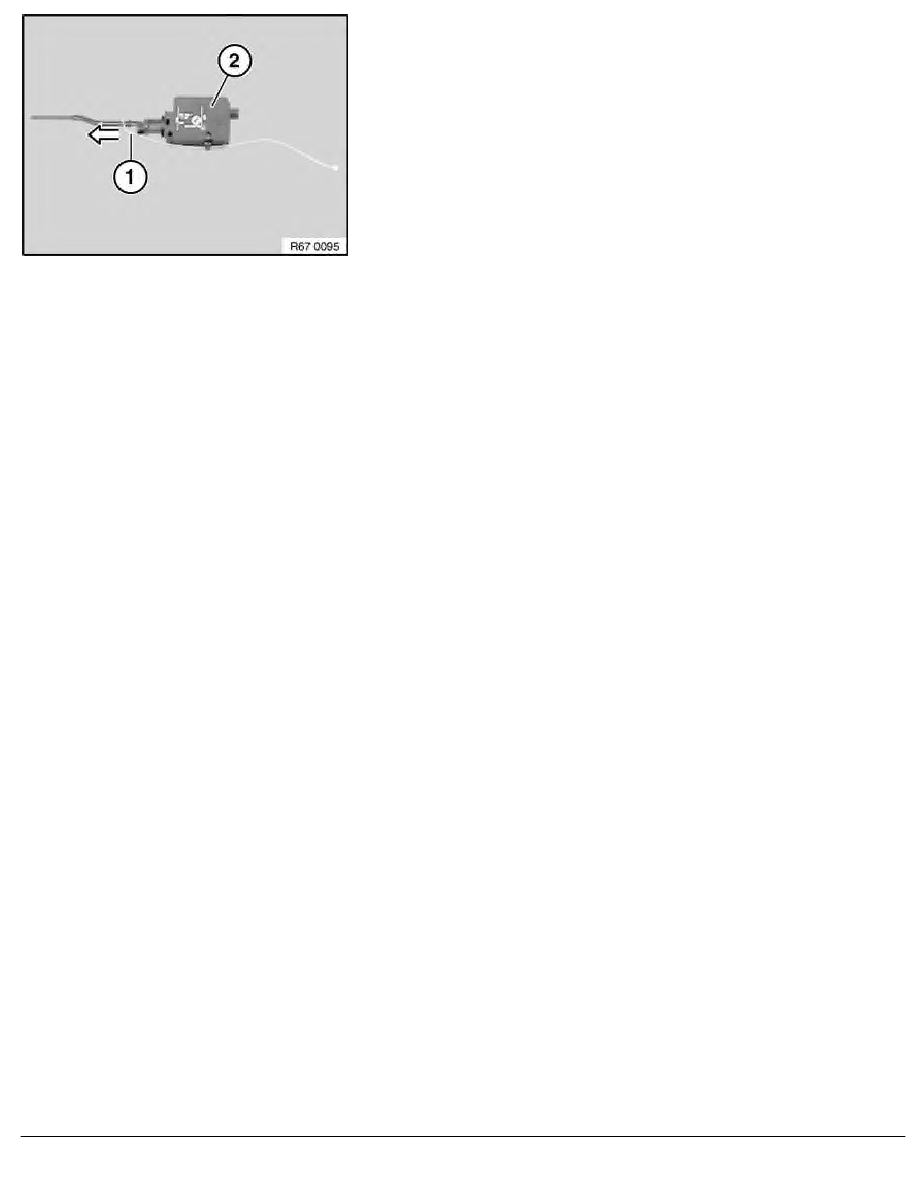

Remove pull strap for emergency actuator (1) in direction of
arrow from servodrive for tank filler flap (2).

RA  Removing and installing/replacing servodrive for tank filler flap

BMW AG - TIS

17.02.2013  04:03

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 3 -
